Product Datasheet Search Results:
4 Pages, 157 KB, Original- P4SMAJ26A
- Diotec Semiconductor
- 400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC
4 Pages, 154 KB, Original- P4SMAJ26A
- Diotech Electronics Corporation
- Diode TVS Single Uni-Dir 26V 400W Automotive 2-Pin SMA T/R
4 Pages, 154 KB, Original- P4SMAJ26A
- Diotec Semiconductor Ag
- Diode TVS Single Uni-Dir 26V 400W Automotive 2-Pin SMA T/R
6 Pages, 460 KB, Original- P4SMAJ26A
- Micro Commercial Components
- 400 Watt Transient Voltage Suppressors 5.0 to 170 Volts
4 Pages, 105 KB, Original- P4SMAJ26AP
- Micro Commercial Components Corp.
- 400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC
6 Pages, 174 KB, Original- P4SMAJ26A
- Panjit Semiconductor
- 400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC
6 Pages, 174 KB, Original- P4SMAJ26AT/R13
- Panjit Semiconductor
- 400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC
6 Pages, 174 KB, Original- P4SMAJ26AT/R7
- Panjit Semiconductor
- 400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC
4 Pages, 214 KB, Scan- P4SMAJ26A
- Surge Components, Inc.
- SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR VOLTAGE-5.0-170Volts
5 Pages, 203 KB, Original- P4SMAJ26A
- Transys Electronics
- SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
5 Pages, 70 KB, Original- P4SMAJ26A-T1
- Won-top Electronics Co., Ltd.
- TRANSIENT SUPPRESSOR DIODE,SINGLE,UNIDIRECTIONAL,26V V(RWM),DO-214AC / SMA
Product Details Search Results:
Diotec.com/P4SMAJ26A
{"Status":"ACTIVE","Polarity":"UNIDIRECTIONAL","Package Body Material":"PLASTIC/EPOXY","Mfr Package Description":"ROHS COMPLIANT, PLASTIC, SMA, 2 PIN","Breakdown Voltage-Min":"28.9 V","Terminal Form":"C BEND","Non-rep Peak Rev Power Dis-Max":"400 W","Package Style":"SMALL OUTLINE","Breakdown Voltage-Max":"32.1 V","Diode Element Material":"SILICON","Power Dissipation Limit-Max":"1 W","Number of Elements":"1","Stand-off Voltage":"26 V","Terminal Position":"DUAL","Diode Type":"TRANS VOLTAGE SUPPRESSOR DIODE","...
1329 Bytes - 21:36:53, 21 November 2024
Diotech_electronics_corporation/P4SMAJ26A
{"Polarity":"Uni-Directional","Clamping Voltage":"42.1(V)","Test Current (It)":"1(mA)","Reverse Breakdown Voltage":"28.9(V)","Mounting":"Surface Mount","Rad Hardened":"No","Leakage Current (Max)":"0.005(uA)","Packaging":"Tape and Reel","Operating Temperature Classification":"Automotive","Operating Temp Range":"-50C to 150C","Package Type":"SMA","Number of Elements":"1","Peak Pulse Current":"9.5(A)","Reverse Stand-off Voltage ":"26(V)","Pin Count":"2","Peak Pulse Power Dissipation":"400(W)"}...
1581 Bytes - 21:36:53, 21 November 2024
Diotec_semiconductor_ag/P4SMAJ26A
{"Polarity":"Uni-Directional","Clamping Voltage":"42.1(V)","Test Current (It)":"1(mA)","Reverse Breakdown Voltage":"28.9(V)","Mounting":"Surface Mount","Operating Temp Range":"-50C to 150C","Leakage Current (Max)":"0.005(uA)","Packaging":"Tape and Reel","Operating Temperature Classification":"Automotive","Rad Hardened":"No","Package Type":"SMA","Peak Pulse Power Dissipation":"400(W)","Peak Pulse Current":"9.5(A)","Reverse Stand-off Voltage ":"26(V)","Pin Count":"2","Number of Elements":"1"}...
1466 Bytes - 21:36:53, 21 November 2024
Mccsemi.com/P4SMAJ26AP
{"Polarity":"UNIDIRECTIONAL","Terminal Finish":"MATTE TIN","Breakdown Voltage-Min":"28.9 V","Terminal Form":"C BEND","Breakdown Voltage-Max":"31.9 V","Package Shape":"RECTANGULAR","Status":"ACTIVE","Lead Free":"Yes","Package Body Material":"PLASTIC/EPOXY","Non-rep Peak Rev Power Dis-Max":"400 W","EU RoHS Compliant":"Yes","Configuration":"SINGLE","Stand-off Voltage":"26 V","Power Dissipation Limit-Max":"1 W","Surface Mount":"Yes","Mfr Package Description":"SMA, 2 PIN","Number of Terminals":"2","Terminal Posi...
1410 Bytes - 21:36:53, 21 November 2024
Panjit.com.tw/P4SMAJ26A
{"Polarity":"UNIDIRECTIONAL","Terminal Finish":"NOT SPECIFIED","Breakdown Voltage-Min":"28.9 V","Terminal Form":"C BEND","Breakdown Voltage-Max":"33.2 V","Package Shape":"RECTANGULAR","Status":"ACTIVE","Lead Free":"Yes","Package Body Material":"PLASTIC/EPOXY","Non-rep Peak Rev Power Dis-Max":"400 W","EU RoHS Compliant":"Yes","Configuration":"SINGLE","Stand-off Voltage":"26 V","Surface Mount":"Yes","Mfr Package Description":"ROHS COMPLIANT, PLASTIC, SMA, 2 PIN","Number of Terminals":"2","Terminal Position":"...
1376 Bytes - 21:36:53, 21 November 2024
Panjit.com.tw/P4SMAJ26AT/R13
{"Polarity":"UNIDIRECTIONAL","Terminal Finish":"NOT SPECIFIED","Breakdown Voltage-Min":"28.9 V","Terminal Form":"C BEND","Breakdown Voltage-Max":"33.2 V","Package Shape":"RECTANGULAR","Status":"ACTIVE","Lead Free":"Yes","Package Body Material":"PLASTIC/EPOXY","Non-rep Peak Rev Power Dis-Max":"400 W","EU RoHS Compliant":"Yes","Configuration":"SINGLE","Stand-off Voltage":"26 V","Surface Mount":"Yes","Mfr Package Description":"ROHS COMPLIANT, PLASTIC, SMA, 2 PIN","Number of Terminals":"2","Terminal Position":"...
1409 Bytes - 21:36:53, 21 November 2024
Panjit.com.tw/P4SMAJ26AT/R7
{"Polarity":"UNIDIRECTIONAL","Terminal Finish":"NOT SPECIFIED","Breakdown Voltage-Min":"28.9 V","Terminal Form":"C BEND","Breakdown Voltage-Max":"33.2 V","Package Shape":"RECTANGULAR","Status":"ACTIVE","Lead Free":"Yes","Package Body Material":"PLASTIC/EPOXY","Non-rep Peak Rev Power Dis-Max":"400 W","EU RoHS Compliant":"Yes","Configuration":"SINGLE","Stand-off Voltage":"26 V","Surface Mount":"Yes","Mfr Package Description":"ROHS COMPLIANT, PLASTIC, SMA, 2 PIN","Number of Terminals":"2","Terminal Position":"...
1405 Bytes - 21:36:53, 21 November 2024
Wontop.com/P4SMAJ26A-T1
{"Status":"ACTIVE","Diode Type":"TRANS VOLTAGE SUPPRESSOR DIODE","Terminal Finish":"TIN LEAD"}...
840 Bytes - 21:36:53, 21 November 2024
Wontop.com/P4SMAJ26A-T3
{"Status":"ACTIVE","Polarity":"UNIDIRECTIONAL","Terminal Finish":"TIN LEAD","Package Body Material":"PLASTIC/EPOXY","Mfr Package Description":"PLASTIC, SMA, 2 PIN","Breakdown Voltage-Min":"28.9 V","Terminal Form":"C BEND","Non-rep Peak Rev Power Dis-Max":"400 W","Package Style":"SMALL OUTLINE","Breakdown Voltage-Max":"31.9 V","Diode Element Material":"SILICON","Power Dissipation Limit-Max":"1 W","Number of Elements":"1","Stand-off Voltage":"26 V","Terminal Position":"DUAL","Diode Type":"TRANS VOLTAGE SUPPRE...
1378 Bytes - 21:36:53, 21 November 2024
Wontop.com/P4SMAJ26A-T3-LF
{"Polarity":"UNIDIRECTIONAL","Terminal Finish":"NOT SPECIFIED","Breakdown Voltage-Min":"28.9 V","Terminal Form":"C BEND","Breakdown Voltage-Max":"31.9 V","Package Shape":"RECTANGULAR","Status":"ACTIVE","Lead Free":"Yes","Package Body Material":"PLASTIC/EPOXY","Non-rep Peak Rev Power Dis-Max":"400 W","EU RoHS Compliant":"Yes","Configuration":"SINGLE","Stand-off Voltage":"26 V","Power Dissipation Limit-Max":"1 W","Surface Mount":"Yes","Mfr Package Description":"ROHS COMPLIANT, PLASTIC, SMA, 2 PIN","Number of ...
1459 Bytes - 21:36:53, 21 November 2024
Worldproducts.com/P4SMAJ26A
{"Status":"ACTIVE","Polarity":"UNIDIRECTIONAL","Terminal Finish":"TIN LEAD","Package Body Material":"PLASTIC/EPOXY","Mfr Package Description":"PLASTIC PACKAGE-2","Breakdown Voltage-Min":"28.9 V","Terminal Form":"C BEND","Non-rep Peak Rev Power Dis-Max":"400 W","Package Style":"SMALL OUTLINE","Breakdown Voltage-Max":"31.9 V","Diode Element Material":"SILICON","Number of Elements":"1","Stand-off Voltage":"26 V","Terminal Position":"DUAL","Diode Type":"TRANS VOLTAGE SUPPRESSOR DIODE","Package Shape":"RECTANGUL...
1311 Bytes - 21:36:53, 21 November 2024
Worldproducts.com/P4SMAJ26A-F
{"Polarity":"UNIDIRECTIONAL","Terminal Finish":"NOT SPECIFIED","Breakdown Voltage-Min":"28.9 V","Terminal Form":"C BEND","Breakdown Voltage-Max":"31.9 V","Package Shape":"RECTANGULAR","Status":"ACTIVE","Lead Free":"Yes","Package Body Material":"PLASTIC/EPOXY","Non-rep Peak Rev Power Dis-Max":"400 W","EU RoHS Compliant":"Yes","Configuration":"SINGLE","Stand-off Voltage":"26 V","Surface Mount":"Yes","Mfr Package Description":"ROHS COMPLIANT, PLASTIC PACKAGE-2","Number of Terminals":"2","Terminal Position":"DU...
1388 Bytes - 21:36:53, 21 November 2024
Documentation and Support
Use our online request for specific proposed solutions or send your technical question directly to a product specialist at request:
| File Name | File Size (MB) | Document | MOQ | Support |
|---|---|---|---|---|

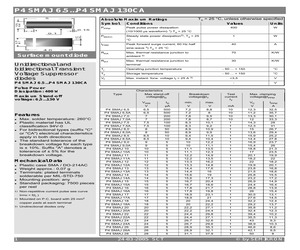

| P4SMAJ26A.pdf | 0.23 | 1 | Request |
