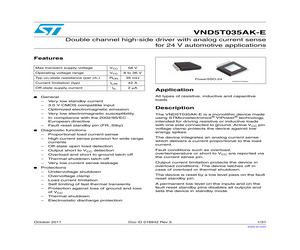

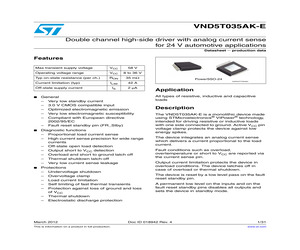

VND5T035AK-E Double channel high-side driver with analog current sense for 24 V automotive applications Datasheet - production data Features Max transient supply voltage VCC 58 V Operating voltage range VCC 8 to 36 V Typ on-state resistance (per ch.) RON 35 m Current limitation (typ) ILIM 42 A Off-state supply current IS 2 A General - Very low standby current - 3.0 V CMOS compatible input - Optimized electromagnetic emission - Very low electromagnetic susceptibility - Compliant with European directive 2002/95/EC - Fault reset standby pin (FR_Stby) Diagnostic functions - Proportional load current sense - High current sense precision for wide range currents - Off-state open load detection - Output short to VCC detection - Overload and short to ground latch off - Thermal shutdown latch-off - Very low current sense leakage Protections - Undervoltage shutdown - Overvoltage clamp - Load current limitation - Self limiting of fast thermal transients - Protection against loss of ground and loss of VCC - T

VND5T035AK-E Double channel high-side driver with analog current sense for 24 V automotive applications Datasheet - production data Features Max transient supply voltage VCC 58 V Operating voltage range VCC 8 to 36 V Typ on-state resistance (per ch.) RON 35 m Current limitation (typ) ILIM 42 A Off-state supply current IS 2 A General - Very low standby current - 3.0 V CMOS compatible input - Optimized electromagnetic emission - Very low electromagnetic susceptibility - Compliant with European directive 2002/95/EC - Fault reset standby pin (FR_Stby) Diagnostic functions - Proportional load current sense - High current sense precision for wide range currents - Off-state open load detection - Output short to VCC detection - Overload and short to ground latch off - Thermal shutdown latch-off - Very low current sense leakage Protections - Undervoltage shutdown - Overvoltage clamp - Load current limitation - Self limiting of fast thermal transients - Protection against loss of ground and loss of VCC - T

VND5T035AK-E Double channel high-side driver with analog current sense for 24 V automotive applications Datasheet - production data Features Max transient supply voltage VCC 58 V Operating voltage range VCC 8 to 36 V Typ on-state resistance (per ch.) RON 35 m Current limitation (typ) ILIM 42 A Off-state supply current IS 2 A General - Very low standby current - 3.0 V CMOS compatible input - Optimized electromagnetic emission - Very low electromagnetic susceptibility - Compliant with European directive 2002/95/EC - Fault reset standby pin (FR_Stby) Diagnostic functions - Proportional load current sense - High current sense precision for wide range currents - Off-state open load detection - Output short to VCC detection - Overload and short to ground latch off - Thermal shutdown latch-off - Very low current sense leakage Protections - Undervoltage shutdown - Overvoltage clamp - Load current limitation - Self limiting of fast thermal transients - Protection against loss of ground and loss of VCC - T

VND5T035AK-E Double channel high-side driver with analog current sense for 24 V automotive applications Features Max transient supply voltage VCC 58 V Operating voltage range VCC 8 to 36 V Typ on-state resistance (per ch.) RON 35 m Current limitation (typ) ILIM 42 A Off-state supply current IS 2 A General - Very low standby current - 3.0 V CMOS compatible input - Optimized electromagnetic emission - Very low electromagnetic susceptibility - In compliance with the 2002/95/EC European directive - Fault reset standby pin (FR_Stby) Diagnostic functions - Proportional load current sense - High current sense precision for wide range currents - Off-state open load detection - Output short to VCC detection - Overload and short to ground latch off - Thermal shutdown latch-off - Very low current sense leakage Protections - Undervoltage shutdown - Overvoltage clamp - Load current limitation - Self limiting of fast thermal transients - Protection against loss of ground and loss of VCC - Thermal shutdown - El

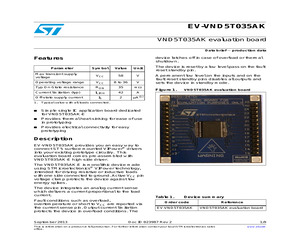

inputs and on the fault reset standby pins disables all outputs and sets the device in standby mode. Figure 1. VND5T035AK evaluation board Table 1. Device summary 1. Typical value with all loads connected. Simple single IC application board dedicated for VND5T035AK-E Provides thermal heat-sinking for ease of use in prototyping Provides electrical connectivity for easy prototyping Description EV-VND5T035AK provides you an easy way to connect ST's surface mounted VIPower(R) drivers into your existing prototype circuitry. This evaluation board comes pre-assembled with VND5T035AK-E high-side driver. The VND5T035AK-E is monolithic device made using STMicroelectronics(R) VIPower technology, intended for driving resistive or inductive loads with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes. The device integrates an analog current sense which delivers a current proportional to the load current. Fault conditions such as

inputs and on the fault reset standby pins disables all outputs and sets the device in standby mode. Figure 1. VND5T035AK evaluation board Table 1. Device summary 1. Typical value with all loads connected. Simple single IC application board dedicated for VND5T035AK-E Provides thermal heat-sinking for ease of use in prototyping Provides electrical connectivity for easy prototyping Description EV-VND5T035AK provides you an easy way to connect ST's surface mounted VIPower(R) drivers into your existing prototype circuitry. This evaluation board comes pre-assembled with VND5T035AK-E high-side driver. The VND5T035AK-E is monolithic device made using STMicroelectronics(R) VIPower technology, intended for driving resistive or inductive loads with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes. The device integrates an analog current sense which delivers a current proportional to the load current. Fault conditions such as

inputs and on the fault reset standby pins disables all outputs and sets the device in standby mode. Figure 1. VND5T035AK evaluation board Table 1. Device summary 1. Typical value with all loads connected. Simple single IC application board dedicated for VND5T035AK-E Provides thermal heat-sinking for ease of use in prototyping Provides electrical connectivity for easy prototyping Description EV-VND5T035AK provides you an easy way to connect ST's surface mounted VIPower(R) drivers into your existing prototype circuitry. This evaluation board comes pre-assembled with VND5T035AK-E high-side driver. The VND5T035AK-E is monolithic device made using STMicroelectronics(R) VIPower technology, intended for driving resistive or inductive loads with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes. The device integrates an analog current sense which delivers a current proportional to the load current. Fault conditions such as

ff Short-circuit protection PowerSSO-36 PowerSSO-36 VNQ7003SY(*) VNQ7004SY(*) 4.0 4.0 4 min (V) 28 28 28 max (V) Supply voltage (VCC) 38 38 38 Absolute max supply voltage (V) PowerSSO-24 PowerSSO-24 PowerSSO-24 PowerSSO-12 PowerSSO-12 SO-16N VND5T035LAK-E VND5T035AK-E VND5T050AK-E VND5T100LAJ-E VND5T100AJ-E VND5T100A-E HPAK PowerSO-16 VN5T016AH-E PowerSO-10 VND5T016ASP-E Package VN5T006ASP-E Part number 8 8 8 8 8 8 8 8 8 min (V) 36 36 36 36 36 36 36 36 36 80 35 80 30 2 x 25 2x9 2 x 35 58 58 58 58 58 58 58 58 58 Absolute max supply voltage (V) 34 2x7 Output current limit (Ilim) (A) 5 x 40 On-state resistance RDS(on) (m) max (V) Supply voltage (VCC) HIGH-SIDE SWITCHES FOR 24 V APPLICATIONS - TRUCK DEVICES (*) In development. PowerSSO-36 Package VNP7008SY(*) Part number HIGH-SIDE SWITCHES WITH SPI AND ASYMMETRICAL OUTPUT 12 100 100 100 50 35 35 16 16 6 On-state resistance RDS(on) (m) * * * Current sense * * * SPI 22 22 22 34 42 42 60 70 115 Output current limit (Ilim) (A) * * Optimized for LED appli

stance RDS(on) max voltage (V) (m) 58 100 58 100 Package Technology Supply voltage (VCC) min (V) Supply voltage (VDD) max (V) VND5T100A-E (*) VND5T100AJ-E SO-16N PowerSSO-12 M0-5T M0-5T 8 8 36 36 VND5T100LAJ-E PowerSSO-12 M0-5T 8 36 58 100 22 VND5T050AK-E VND5T035AK-E PowerSSO-24 PowerSSO-24 M0-5T M0-5T 8 8 36 36 58 58 50 35 34 42 VND5T035LAK-E PowerSSO-24 M0-5T 8 36 58 35 42 VN5T016AH-E HPAK VND5T016ASP-E PowerSO-16 VN5T006ASP-E PowerSO-10 (*) In development. Available in Q4/2013 M0-5T M0-5T M0-5T 8 8 8 36 36 36 58 58 58 16 16 6 67 60 84 Part number 8 Drain current limit (Ilim) typ (A) 22 22 Current sense * * Optimized for LED applications * * Optimized for LED applications * * * OMNIFETTM SMART POWER LOW-SIDE SWITCHES Part number VND1NV04-E VND1NV041-E VNN1NV04PE VNS1NV04PE VND3NV04-E VNN3NV04PE VNS3NV04PE VNN7NV04PE VNS7NV04PE VND7NV04-E VNB14NV04-E VND14NV04-E VND14NV041-E VNS14NV04PE VNB35NV04E VNV35NV04E VNS1NV04DPE VNS3NV04DPE 9 Package Technology Number of Channels Clamp Voltage typ (V) D
