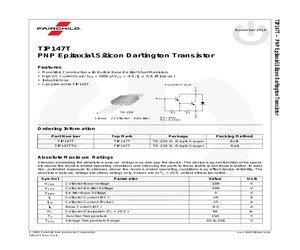

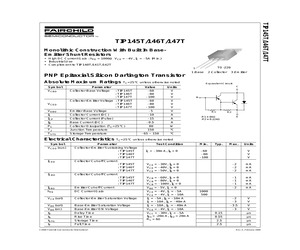

V, IC = -5 A (Minimum) Industrial Use Complement to TIP142T Equivalent Circuit C B TO-220 1 1.Base 2.Collector R1 3.Emitter R2 R1 8k R2 0.12k E Ordering Information Part Number Top Mark Package Packing Method TIP147T TIP147T TO-220 3L (Single Gauge) Bulk TIP147TTU TIP147T TO-220 3L (Single Gauge) Rail Absolute Maximum Ratings Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions and stressing the parts to these levels is not recommended. In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only. Values are at TC = 25C unless otherwise noted. Symbol Parameter Value Unit VCBO Collector-Base Voltage -100 V VCEO Collector-Emitter Voltage -100 V VEBO Emitter-Base Voltage -5 V IC Collector Current (DC) -10 A ICP Collector Current (Pulse) -15 A IB Base Current (DC) -0.5 A PC Collector Dissip

ted line Distributor and field sales representatives Dotted line Quality and reliability Dotted line Design tools technical information buy products back to top technical support Product status/pricing/packaging my Fairchild company Product Product status TIP147TTU Full Production TIP147T Full Production Pricing* Package type Leads Packing method $0.72 TO-220 3 RAIL $0.72 TO-220 3 BULK * 1,000 piece Budgetary Pricing back to top Models Package & leads Condition Temperature range Software version Revision date Electrical/Thermal -25C to 100C 9.2 Feb 28, 2001 PSPICE TO-220-3 back to top file:///C|/PDF/TIP147T.html (1 of 2) [29-Jul-02 9:23:41 AM] Product Folder - Fairchild P/N TIP147T - PNP Epitaxial Silicon Darlington Transistor space Home | Find products | Technical information | Buy products | Support | Company | Contact us | Site index | Privacy policy space (c) Copyright 2002 Fairchild Semiconductor space file:///C|/PDF/TIP147T.html (2 of 2) [29-Jul-02 9:23:41 AM] space Product Folder - Fairchi

V, IC = -5 A (Minimum) Industrial Use Complement to TIP142T Equivalent Circuit C B TO-220 1 1.Base 2.Collector R1 3.Emitter R2 R1 8k R2 0.12k E Ordering Information Part Number Top Mark Package Packing Method TIP147T TIP147T TO-220 3L (Single Gauge) Bulk TIP147TTU TIP147T TO-220 3L (Single Gauge) Rail Absolute Maximum Ratings Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions and stressing the parts to these levels is not recommended. In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only. Values are at TC = 25C unless otherwise noted. Symbol Parameter Value Unit VCBO Collector-Base Voltage -100 V VCEO Collector-Emitter Voltage -100 V VEBO Emitter-Base Voltage -5 V IC Collector Current (DC) -10 A ICP Collector Current (Pulse) -15 A IB Base Current (DC) -0.5 A PC Collector Dissip

ter Shunt Resistors * High DC Current Gain: hFE = 1000 at VCE = -4 V, IC = -5 A www.onsemi.com (Minimum) * Industrial Use * Complement to TIP142T ORDERING INFORMATION Part Number Top Mark Package Packing Method TIP147T TIP147 TO-220 3L (Single Gauge) Bulk TIP147TTU TIP147 TO-220 3L (Single Gauge) Rail TO-220 1 1.Base 2.Collector 3.Emitter TO-220 MOLDED CASE 340AT EQUIVALENT CIRCUIT C B R1 R1 ^ 8 kW R2 ^ 0.12 kW (c) Semiconductor Components Industries, LLC, 2002 March, 2017 - Rev. 2 1 R2 E Publication Order Number: TIP147T/D TIP147T Table 1. ABSOLUTE MAXIMUM RATINGS Symbol Parameter Value Unit VCBO Collector-Base Voltage -100 V VCEO Collector-Emitter Voltage -100 V VEBO Emitter-Base Voltage -5 V IC Collector Current (DC) -10 A ICP Collector Current (Pulse) -15 A -0.5 A 80 W 150 C -65 to 150 C IB Base Current (DC) PC Collector Dissipation (TC = 25C) TJ Junction Temperature TSTG Storage Temperature Range Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of th
