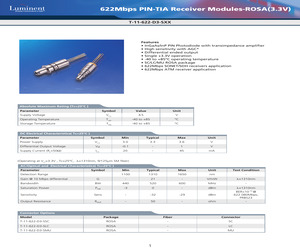

0 520 600 MHz - Saturation Power Psat -3 0 - dBm Sensitivity Sens - -32 -29 dBm Output Resistance Rout - 50 - ohm =1310nm BER=10-10 @ 622.080Mbps, PRBS23 - Connector Options Model Package Fiber Connector T-11-622-D3-SSC ROSA - SC T-11-622-D3-SLC ROSA - LC T-11-622-D3-SMU ROSA - MU 1 622Mbps PIN-TIA Receiver Modules-ROSA(3.3V) T-11-622-D3-SXX Pin Assignment Pin assignment 1~Vc c 2~D out 3~D out 4~GND(CASE) Outline Drawing 622Mbps PIN-TIA Receiver Modules-ROSA (3.3V) 2 622Mbps PIN-TIA Receiver Modules-ROSA(3.3V) T-11-622-D3-SXX Warnings Handling Precautions: This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended. Follow guidelines according to proper ESD procedures. Laser Safety: Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation. Legal Notice IMPORTANT NOTICE! All information contained in this document is subject to change without notice, at Luminents sole
.5169222 * fax: 886.3.5169213 1 LUMNDS548-MAY0806 rev. A.1 622Mbps PIN-TIA Receiver Modules-ROSA (3.3V) T-11-622-D3-SXX-XX Pin Assignment Pin assignment 1~Vcc 2~Dout 3~Dout 4~GND(CASE) Packaging Dimension Units in mm. T-11-622-D3-SSC-XX T-11-622-D3-SLC-XX T-11-622-D3-SMU-XX LUMINENTOIC.COM 20550 Nordhoff St. * Chatsworth, CA 91311 * tel: 818.773.9044 * fax: 818.576.9486 9F, No 81, Shui Lee Rd. * Hsinchu, Taiwan, R.O.C. * tel: 886.3.5169222 * fax: 886.3.5169213 2 LUMNDS548-MAY0806 rev. A.1 622Mbps PIN-TIA Receiver Modules-ROSA (3.3V) T-11-622-D3-SXX-XX Ordering Information Package D=ROSA Voltage 3=3.3V Connector SC/LC/MU Fiber Application S=SM 9/125m RoHS Compliant -/G5/GR Blank = RoHS non-compliant product GR = Full RoHS compliant product (no exemption) Warnings Handling Precautions: This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended. Follow guidelines according to proper ESD procedures. Laser Safety: Radiation emitte
