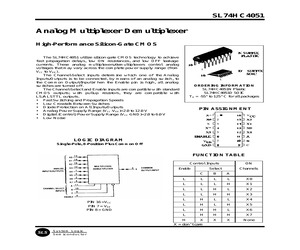

agation Speeds * Low Crosstalk Between Switches * Diode Protection on All Inputs/Outputs * Analog Power Supply Range (VCC-VEE)=2.0 to 12.0 V * Digital (Control) Power Supply Range (VCC-GND)=2.0 to 6.0 V * Low Noise ORDERING INFORMATION SL74HC4051N Plastic SL74HC4051D SOIC TA = -55 to 125 C for all packages PIN ASSIGNMENT LOGIC DIAGRAM Single-Pole, 8-Position Plus Common Off FUNCTION TABLE Control Inputs Enable PIN 16 =VCC PIN 7 = VEE PIN 8 = GND Select System Logic Semiconductor Channels C B A L L L L X0 L L L H X1 L L H L X2 L L H H X3 L H L L X4 L H L H X5 L H H L X6 L H H H X7 H X X X None X = don't care SLS ON SL74HC4051 MAXIMUM RATINGS * Symbol Parameter Value Unit VCC Positive DC Supply Voltage (Referenced to GND) (Referenced to VEE) -0.5 to +7.0 -0.5 to +14.0 V VEE Negative DC Supply Voltage (Referenced to GND) -7.0 to +0.5 V VIS Analog Input Voltage VEE - 0.5 to VCC+0.5 V VIN Digital Input Voltage (Referenced to GND) -1.5 to VCC +1.5 V DC Input Current Into or Out of Any Pin 25 mA Power D
