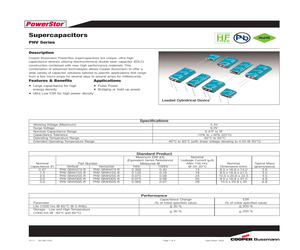

ating Temperature Range 5.4V 6.0V 0.47F to 5F -10% to +30% (20C) -40C to 65C -40C to 85C (with linear voltage derating to 4.0V @ 85C) Standard Product Nominal Capacitance (F) 0.47 1.5 2.5 3.0 5.0 Part Number Vertical Horizontal PHV-5R4V474-R PHV-5R4H474-R PHV-5R4V155-R PHV-5R4H155-R PHV-5R4V255-R PHV-5R4H255-R PHV-5R4V305-R PHV-5R4H305-R PHV-5R4V505-R PHV-5R4H505-R Maximum ESR () (Equivalent Series Resistance) Measured @ 1kHz 100Hz 0.300 0.40 0.120 0.16 0.075 0.08 0.075 0.08 0.065 0.07 Nominal Leakage Current (A) After 100 Hrs. @ 5V, 20C 13 18 24 25 28 Nominal Dimensions (mm) 8.5 x 16.8 x 14.0 8.5 x 16.8 x 21.5 10.5 x 20.8 x 22.5 8.5 x 16.8 x 31.5 10.5 x 20.8 x 32 Typical Mass (grams/piece) 2.6 3.0 4.5 4.8 6.8 Performance Parameter Life (1000 hrs @ 65C @ 5.4Vdc) Storage - Low and High Temperature (1000 hrs @ -40C and 85C) 0111 BU-SB11022 Capacitance Change (% of initial specified value) < 30 % ESR (% of initial specified value) < 200 % < 30 % < 200 % Page 1 of 2 Data Sheet: 4403 Dimensions (mm) V

Number Maximum ESR () (Equivalent Series Resistance) Measured @ 1 kHz 100Hz Nominal leakage current (A) after 100 hours @ 5 V, +20C Nominal dimensions (mm) Typical mass (grams/piece) 0.5 PHV-5R4V474-R PHV-5R4H474-R 0.300 0.40 13 8.5 x 16.8 x 14.0 2.6 1.5 PHV-5R4V155-R PHV-5R4H155-R 0.120 0.16 18 8.5 x 16.8 x 21.5 3.0 2.5 PHV-5R4V255-R PHV-5R4H255-R 0.075 0.08 24 10.5 x 20.8 x 22.5 4.5 3.0 PHV-5R4V305-R PHV-5R4H305-R 0.075 0.08 25 8.5 x 16.8 x 31.5 4.8 5.0 PHV-5R4V505-R PHV-5R4H505-R 0.065 0.07 28 10.5 x 20.8 x 32 6.8 Performance Parameter Capacitance change (% of initial value) ESR (% of max. initial value) Life (1000 hours @ +65 C @ 5.4 Vdc) 30% 200% Storage - Low and High Temperature (1000 hours @ -40 C and +85 C) 30% 200% Dimensions (mm) Vertical Part Number Horizontal Part Number A B C d' D D' E E' F P PHV-5R4V474-R PHV-5R4H474-R 9.0 17.3 14.5 0.5 20 15 25 20 2.0 11.8 PHV-5R4V155-R PHV-5R4H155-R 9.0 17.3 22.0 0.5 20 15 25 20 2.0 11.8 PHV-5R4V255-R PHV-5R4H255-R PHV-5R4V305-R PHV
