e UTC MJE3055T is designed for general purpose of amplifier and switching applications. Lead-free: MJE3055TL Halogen-free: MJE3055TG ORDERING INFORMATION Normal MJE3055T-TA3-T MJE3055T-TM3-T MJE3055T-TN3-R Ordering Number Lead Free Plating MJE3055TL-TA3-T MJE3055TL-TM3-T MJE3055TL-TN3-R Halogen Free MJE3055TG-TA3-T MJE3055TG-TM3-T MJE3055TG-TN3-R www.unisonic.com.tw Copyright (c) 2009 Unisonic Technologies Co., Ltd Package TO-220 TO-251 TO-252 Pin Assignment 1 2 3 B C E B C E B C E Packing Tube Tube Tape Reel 1 of 2 QW-R203-011.C MJE3055T NPN SILICON TRANSISTOR ABSOLUTE MAXIMUM RATINGS (TC=25, unless otherwise specified) PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage RATINGS UNIT 70 V 60 V 5 V TO-220 75 W Total Power Dissipation PD TO-251/TO-252 20 W Collector Current IC 10 A Base Current IB 6 A Junction Temperature TJ 150 Storage Temperature TSTG -55 ~ +150 Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absol

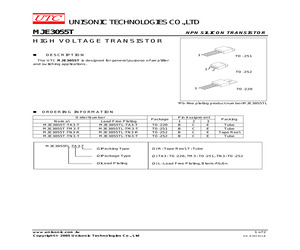

The UTC MJE3055T is designed for general purpose of amplifier and switching applications. 1 TO-252 1 TO-220 *Pb-free plating product number:MJE3055TL ORDERING INFORMATION Order Number Normal Lead Free Plating MJE3055T-TA3-T MJE3055TL-TA3-T MJE3055T-TM3-T MJE3055TL-TM3-T MJE3055T-TN3-R MJE3055TL-TN3-R MJE3055T-TN3-T MJE3055TL-TN3-T Package TO-220 TO-251 TO-252 TO-252 Pin Assignment 1 2 3 B C E B C E B C E B C E Packing Tube Tube Tape Reel Tube MJE3055TL-TA3-T (1)Packing Type (1) R: Tape Reel, T: Tube (2)Package Type (2) TA3: TO-220, TM3: TO-251, TN3: TO-252 (3)Lead Plating (3) L: Lead Free Plating, Blank: Pb/Sn www.unisonic.com.tw Copyright (c) 2005 Unisonic Technologies Co., Ltd 1 of 2 QW-R203-011,B MJE3055T NPN SILICON TRANSISTOR ABSOLUTE MAXIMUM RATINGS (Tc=25) (Operating temperature range applies unless otherwise specified) PARAMETER SYMBOL Collector-Base Voltage VCBO Collector-Emitter Voltage VCEO Emitter-Base Voltage VEBO TO-220 Total Power Dissipation PD TO-251/TO-252 Collector Current IC
