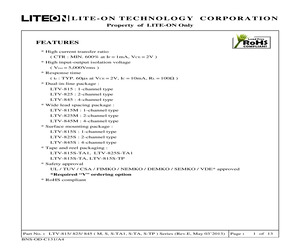

channel type * Wide lead spacing package : LTV-815M : 1-channel type LTV-825M : 2-channel type LTV-845M : 4-channel type * Surface mounting package : LTV-815S : 1-channel type LTV-825S : 2-channel type LTV-845S : 4-channel type * Tape and reel packaging : LTV-815S-TA1, LTV-825S-TA1 LTV-815S-TA, LTV-815S-TP * Safety approval UL / TUV / CSA / FIMKO / NEMKO / DEMKO / SEMKO / VDE* approved *Required "V" ordering option * RoHS compliant Part No. : LTV-815/ 825/ 845 ( M, S, S-TA1, S-TA, S-TP ) Series (Rev.E, May 03'2013) Page : BNS-OD-C131/A4 1 of 13 L IT E - O N T E CH NO L O G Y CO RP O RAT IO N Property of LITE-ON Only OUTLINE DIMENSIONS LTV-815 : LTV-825 : *1. Year date code. *2. 2-digit work week. *3. Factory identification mark shall be marked (W: China-CZ, X : China-TJ, Y : Thailand) Part No. : LTV-815/ 825/ 845 ( M, S, S-TA1, S-TA, S-TP ) Series (Rev.E, May 03'2013) Page : BNS-OD-C131/A4 2 of 13 L IT E - O N T E CH NO L O G Y CO RP O RAT IO N Property of LITE-ON Only OUTLINE DIMENSIONS LTV-845

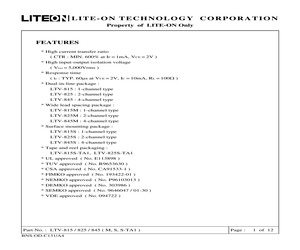

channel type * Wide lead spacing package : LTV-815M : 1-channel type LTV-825M : 2-channel type LTV-845M : 4-channel type * Surface mounting package : LTV-815S : 1-channel type LTV-825S : 2-channel type LTV-845S : 4-channel type * Tape and reel packaging : LTV-815S-TA1, LTV-825S-TA1 * UL approved ( No. E113898 ) * TUV approved ( No. R9653630 ) * CSA approved ( No. CA91533-1 ) * FIMKO approved ( No. 193422-01 ) * NEMKO approved ( No. P96103013 ) * DEMKO approved ( No. 303986 ) * SEMKO approved ( No. 9646047 / 01-30 ) * VDE approved ( No. 094722 ) Part No. : LTV-815 / 825 / 845 ( M, S, S-TA1 ) BNS-OD-C131/A4 Page : 1 of 12 LITE-ON TECHNOLOGY CORPORATION Property of LITE-ON Only OUTLINE DIMENSIONS LTV-815 : LTV-825 : *1. Year date code. *2. 2-digit work week. *3. Factory identification mark shall be marked (Z : Taiwan, Y : Thailand, X : China). Part No. : LTV-815 / 825 / 845 ( M, S, S-TA1 ) BNS-OD-C131/A4 Page : 2 of 12 LITE-ON TECHNOLOGY CORPORATION Property of LITE-ON Only OUTLINE DIMENSIONS LTV-84

spacing package : LTV-815M : 1-channel type LTV-825M : 2-channel type LTV-845M : 4-channel type Surface mounting package : LTV-815S : 1-channel type LTV-825S : 2-channel type LTV-845S : 4-channel type Tape and reel packaging : LTV-815S-TA : 1-channel type LTV-815S-TA1 : 1-channel type LTV-815S-TP : 1-channel type LTV-825S-TA1 : 2-channel type Safety approval UL 1577 VDE DIN EN60747-5-5 (VDE 0884-5) CSA CA5A Nordic Safety ( FIMKO/NEMKO/SEMKO/DEMKO) BSI RoHS Compliance All materials be used in device are followed EU RoHS directive (No.2002/95/EC). ESD pass HBM 8000V/MM2000V MSL class1 1.2 Applications Hybrid substrates that require high density mounting. Programmable controllers 1/15 Part No.: LTV-8x5 series BNC-OD-FC002/A4 Rev.: - Photocoupler LTV-8x5 series 2. PACKAGE DIMENSIONS 2.1 LTV-815 2.3 LTV-815S 2.2 LTV-815M Notes : 1. Year date code. 2. 2-digit work week. 3. Factory identification mark shall be marked (W: China-CZ, Y: Thailand) 4. Rank shall be or shall not be marked. 5. "" for halogen f

ode shall be marked (Z : Taiwan, Y : Thailand). 4. All dimensions are in millimeters (inches). 5. Tolerance is 0.25mm (.010 ) unless otherwise noted. 6. Specifications are subject to change without notice. Part Number LTV-815 LTV-815M LTV-815S LTV-815S-TA LTV-815S-TA1 LTV-825 LTV-825M LTV-825S LTV-825S-TA LTV-825S-TA1 LTV-845 LTV-845M LTV-845S LTV-845S-TA LTV-845S-TA1 LTV815-V LTV815M-V LTV815S-V LTV815STA-V LTV815STA1-V LTV825-V LTV825M-V LTV825S-V LTV825STA-V LTV825STA1-V LTV845-V LTV845M-V LTV845S-V LTV845STA-V LTV845STA1-V Package 4-pin DIP 4-pin (leads with 0.4" spacing) 4-pin (lead bends for surface mount) 4-pin (tape and reel packaging of type I) 4-pin (tape and reel packaging of type II) 8-pin DIP 8-pin (leads with 0.4" spacing) 8-pin (lead bends for surface mount) 8-pin (tape and reel packaging of type I) 8-pin (tape and reel packaging of type II) 16-pin DIP 16-pin (leads with 0.4" spacing) 16-pin (lead bends for surface mount) 16-pin (tape and reel packaging of type I) 16-pin (tape and
