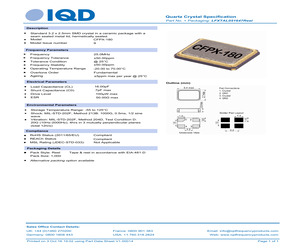

LFXTAL051647REEL Description Standard 3.2 x 2.5mm SMD crystal in a ceramic package with a seam sealed metal lid, hermetically sealed. Model CFPX-180 Model Issue number 9 Frequency Parameters Frequency 25.0MHz Frequency Tolerance Tolerance Condition Frequency Stability 50.00ppm @ 25C 50.00ppm Operating Temperature Range -20.00 to 70.00C Overtone Order Ageing Fundamental 5ppm max per year @ 25C Electrical Parameters Outline (mm) 16.00pF 7pF max Load Capacitance (CL) Shunt Capacitance (C0) Drive Level ESR 100W max 50.00 max Environmental Parameters Storage Temperature Range: -55 to 125C Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine wave Vibration: MIL-STD-202F, Method 204D, Test Condition D: 20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes (total 12hrs) Compliance RoHS Status (2011/65/EU) REACh Status MSL Rating (JDEC-STD-033): Compliant Compliant Not Applicable Packaging Details Pack Style: Reel Pack Size: 1,000 Tape & reel in accordance with EIA-481-D Alternative packing optio

LFXTAL051647REEL Customer Part: Description Standard 3.2 x 2.5mm SMD crystal in a ceramic package with a seam sealed metal lid, hermetically sealed. Model CFPX-180 Model Issue number 10 Frequency Parameters Frequency 25.0MHz Frequency Tolerance Tolerance Condition Frequency Stability 50.00ppm @ 25C 50.00ppm Operating Temperature Range -20.00 to 70.00C Overtone Order Ageing Fundamental 5ppm max per year @ 25C Electrical Parameters Outline (mm) 16.00pF 7pF max Load Capacitance (CL) Shunt Capacitance (C0) Drive Level ESR 100W max 50.00 max Environmental Parameters Storage Temperature Range: -55 to 125C Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine wave Vibration: MIL-STD-202F, Method 204D, Test Condition D: 20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes (total 12hrs) Manufacturing Details RoHS Terminations RoHS Reflow Temp NiAu 260degC 10s Compliance RoHS Status (2015/863/EU) REACh Status MSL Rating (JDEC-STD-033): Compliant Compliant Not Applicable Packaging Details Pack Styl
