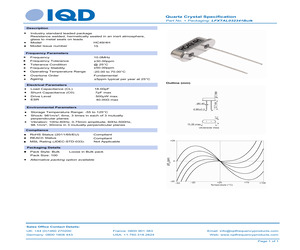

LFXTAL032341BULK Description Industry standard leaded package Resistance welded, hermetically sealed in an inert atmosphere, glass to metal seals on leads Model HC49/4H Model Issue number 15 Frequency Parameters Frequency 10.0MHz Frequency Tolerance Tolerance Condition Frequency Stability 30.00ppm @ 25C 50.00ppm Operating Temperature Range -20.00 to 70.00C Overtone Order Ageing Fundamental 5ppm typical per year at 25C Outline (mm) Electrical Parameters 18.00pF 7pF max Load Capacitance (CL) Shunt Capacitance (C0) Drive Level ESR 500W max 40.00 max Environmental Parameters Storage Temperature Range: -55 to 125C Shock: 981m/s, 6ms, 3 times in each of 3 mutually perpendicular planes Vibration: 10Hz-60Hz, 0.75mm amplitude, 60Hz-500Hz, 98.1m/s, 30mins in 3 mutually perpendicular planes Compliance RoHS Status (2011/65/EU) REACh Status MSL Rating (JDEC-STD-033): Compliant Compliant Not Applicable Packaging Details Pack Style: Bulk Pack Size: 100 Loose in Bulk pack Alternative packing option available Sal

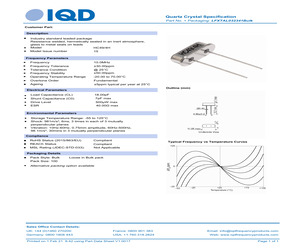

LFXTAL032341BULK Customer Part: Description Industry standard leaded package Resistance welded, hermetically sealed in an inert atmosphere, glass to metal seals on leads Model HC49/4H Model Issue number 15 Frequency Parameters Frequency 10.0MHz Frequency Tolerance Tolerance Condition Frequency Stability 30.00ppm @ 25C 50.00ppm Operating Temperature Range -20.00 to 70.00C Overtone Order Ageing Fundamental 5ppm typical per year at 25C Outline (mm) Electrical Parameters 18.00pF 7pF max Load Capacitance (CL) Shunt Capacitance (C0) Drive Level ESR 500W max 40.00 max Environmental Parameters Storage Temperature Range: -55 to 125C Shock: 981m/s, 6ms, 3 times in each of 3 mutually perpendicular planes Vibration: 10Hz-60Hz, 0.75mm amplitude, 60Hz-500Hz, 98.1m/s, 30mins in 3 mutually perpendicular planes Compliance RoHS Status (2015/863/EU) REACh Status MSL Rating (JDEC-STD-033): Compliant Compliant Not Applicable Typical Frequency vs Temperature Curves Packaging Details Pack Style: Bulk Pack Size: 100 Loo
