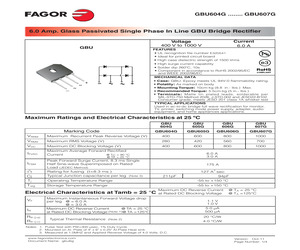

GBU604G ........ GBU607G 6.0 Amp. Glass Passivated Single Phase In Line GBU Bridge Rectifier Current 6.0 A Voltage 400 V to 1000 V GBU FEATURES UL recognition file number E320541 Ideal for printed circuit board High case dielectric strength of 1500 Vrms High surge current capability Solder dip 260C, 10s Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC MECHANICAL DATA Case: GBU. Epoxy meets UL 94V-0 flammability rating. Polatity: As marked on body Mounting Torque: 10cm-kg (8.8 in.- Ibs.) Max. Recommended Torque: 5.5cm-kg (5 in.- Ibs.) Terminals : Matte tin plated leads, solderable per MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102. Consumer grade, meets JESD 201 class 1A whisker test TYPICAL APPLICATIONS Used in ac-to-dc bridge full wave rectification for monitor, TV, printer, switching mode power supply, adapter, audio equipment, and home appliances applications. Maximum Ratings and Electrical Characteristics at 25 C Marking Code GBU 604G GBU 605G GBU 606G GBU 607G GBU604G

GBU604G ........ GBU607G 6.0 Amp. Glass Passivated Single Phase In Line GBU Bridge Rectifier Current 6.0 A Voltage 400 V to 1000 V GBU FEATURES UL recognition file number E320541 Ideal for printed circuit board High case dielectric strength of 1500 Vrms High surge current capability Solder dip 260C, 10s Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC MECHANICAL DATA Case: GBU. Epoxy meets UL 94V-0 flammability rating. Polarity: As marked on body Mounting Torque: 10cm-kg (8.8 in.- Ibs.) Max. Recommended Torque: 5.5cm-kg (5 in.- Ibs.) Terminals : Matte tin plated leads, solderable per MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102. Consumer grade, meets JESD 201 class 1A whisker test TYPICAL APPLICATIONS Used in ac-to-dc bridge full wave rectification for monitor, TV, printer, switching mode power supply, adapter, audio equipment, and home appliances applications. Maximum Ratings and Electrical Characteristics at 25 C Marking Code GBU 604G GBU 605G GBU 606G GBU 607G GBU604G
