ges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. FDB070AN06A0 N-Channel PowerTrench(R) MOSFET 60 V, 80 A, 7 m Features Applications * RDS(on) = 6.1 m ( Typ.) @ VGS = 10 V, ID = 80 A * Synchronous Rectification for ATX / Server / Telecom PSU * Qg(tot) = 51 nC ( Typ.) @ VGS = 10 V * Battery Protection Circuit * Low Miller Charge * Motor Drives and Uninterruptible Power Supplies * Low Qrr Body Diode * UIS Capability (Single Pulse and Repetitive Pulse) Formerly developmental type 82567 D D G G D2-PAK S S MOSFET Maximum Ratings TC = 25C unless otherwise noted Symbol Parameter FDB070AN06A0 Unit V DSS Drain to Source Voltage 60 V VGS Gate to Source Voltage 20 V 80 A 15 A Drain Current ID Continuous (TC < 97oC, VGS = 10V) o o Continuous (TA = 25 C, VGS = 10V, R JA = 43 C/W) Pulsed EAS PD

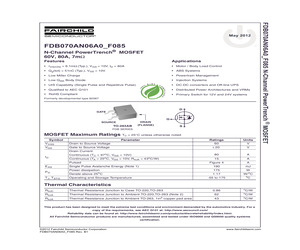

FDB070AN06A0_F085 N-Channel PowerTrench(R) MOSFET 60V, 80A, 7m Features Applications * r DS(ON) = 6.1m (Typ.), V GS = 10V, ID = 80A * Motor / Body Load Control * Qg(tot) = 51nC (Typ.), VGS = 10V * ABS Systems * Low Miller Charge * Powertrain Management * Low QRR Body Diode * Injection Systems * UIS Capability (Single Pulse and Repetitive Pulse) * DC-DC converters and Off-line UPS * Qualified to AEC Q101 * Distributed Power Architectures and VRMs * RoHS Compliant * Primary Switch for 12V and 24V systems Formerly developmental type 82567 D GATE G SOURCE TO-263AB DRAIN (FLANGE) S FDB SERIES MOSFET Maximum Ratings TC = 25C unless otherwise noted Symbol VDSS Drain to Source Voltage Parameter Ratings 60 Units V VGS Gate to Source Voltage 20 V Continuous (TC < 97oC, VGS = 10V) 80 A Continuous (TA = 25oC, VGS = 10V, R JA = 43oC/W) 15 A Drain Current ID Pulsed EAS PD TJ, TSTG Single Pulse Avalanche Energy (Note 1) Figure 4 A 190 mJ Power dissipation 175 W Derate above 25oC 1.17 W/oC Operating and Storage

FDB070AN06A0_F085 N-Channel PowerTrench(R) MOSFET 60V, 80A, 7m Features Applications * r DS(ON) = 6.1m (Typ.), V GS = 10V, ID = 80A * Motor / Body Load Control * Qg(tot) = 51nC (Typ.), VGS = 10V * ABS Systems * Low Miller Charge * Powertrain Management * Low QRR Body Diode * Injection Systems * UIS Capability (Single Pulse and Repetitive Pulse) * DC-DC converters and Off-line UPS * Qualified to AEC Q101 * Distributed Power Architectures and VRMs * RoHS Compliant * Primary Switch for 12V and 24V systems Formerly developmental type 82567 D GATE G SOURCE TO-263AB DRAIN (FLANGE) S FDB SERIES MOSFET Maximum Ratings TC = 25C unless otherwise noted Symbol VDSS Drain to Source Voltage Parameter Ratings 60 Units V VGS Gate to Source Voltage 20 V Continuous (TC < 97oC, VGS = 10V) 80 A Continuous (TA = 25oC, VGS = 10V, R JA = 43oC/W) 15 A Drain Current ID Pulsed EAS PD TJ, TSTG Single Pulse Avalanche Energy (Note 1) Figure 4 A 190 mJ Power dissipation 175 W Derate above 25oC 1.17 W/oC Operating and Storage

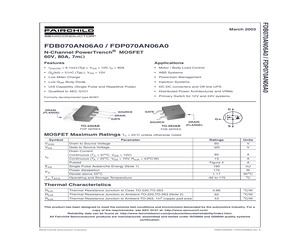

FDB070AN06A0 / FDP070AN06A0 N-Channel PowerTrench(R) MOSFET 60V, 80A, 7m Features Applications * r DS(ON) = 6.1m (Typ.), V GS = 10V, ID = 80A * Motor / Body Load Control * Qg(tot) = 51nC (Typ.), VGS = 10V * ABS Systems * Low Miller Charge * Powertrain Management * Low QRR Body Diode * Injection Systems * UIS Capability (Single Pulse and Repetitive Pulse) * DC-DC converters and Off-line UPS * Qualified to AEC Q101 * Distributed Power Architectures and VRMs Formerly developmental type 82567 * Primary Switch for 12V and 24V systems D DRAIN (FLANGE) SOURCE GATE DRAIN G GATE SOURCE TO-220AB TO-263AB FDP SERIES FDB SERIES DRAIN (FLANGE) S MOSFET Maximum Ratings TC = 25C unless otherwise noted Symbol VDSS Drain to Source Voltage Parameter Ratings 60 Units V VGS Gate to Source Voltage 20 V Continuous (TC < 97oC, VGS = 10V) 80 A Continuous (TA = 25oC, VGS = 10V, R JA = 43oC/W) 15 A Drain Current ID Pulsed EAS PD TJ, TSTG Single Pulse Avalanche Energy (Note 1) Figure 4 A 190 mJ Power dissipation 175 W Dera

FDB070AN06A0 / FDP070AN06A0 N-Channel PowerTrench(R) MOSFET 60V, 80A, 7m Features Applications * r DS(ON) = 6.1m (Typ.), V GS = 10V, ID = 80A * Motor / Body Load Control * Qg(tot) = 51nC (Typ.), VGS = 10V * ABS Systems * Low Miller Charge * Powertrain Management * Low QRR Body Diode * Injection Systems * UIS Capability (Single Pulse and Repetitive Pulse) * DC-DC converters and Off-line UPS * Qualified to AEC Q101 * Distributed Power Architectures and VRMs Formerly developmental type 82567 * Primary Switch for 12V and 24V systems D DRAIN (FLANGE) SOURCE GATE DRAIN G GATE SOURCE TO-220AB TO-263AB FDP SERIES FDB SERIES DRAIN (FLANGE) S MOSFET Maximum Ratings TC = 25C unless otherwise noted Symbol VDSS Drain to Source Voltage Parameter Ratings 60 Units V VGS Gate to Source Voltage 20 V Continuous (TC < 97oC, VGS = 10V) 80 A Continuous (TA = 25oC, VGS = 10V, R JA = 43oC/W) 15 A Drain Current ID Pulsed EAS PD TJ, TSTG Single Pulse Avalanche Energy (Note 1) Figure 4 A 190 mJ Power dissipation 175 W Dera

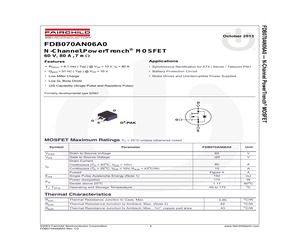

FDB070AN06A0 N-Channel PowerTrench(R) MOSFET 60 V, 80 A, 7 m Features Applications * RDS(on) = 6.1 m ( Typ.) @ VGS = 10 V, ID = 80 A * Synchronous Rectification for ATX / Server / Telecom PSU * Qg(tot) = 51 nC ( Typ.) @ VGS = 10 V * Battery Protection Circuit * Low Miller Charge * Motor Drives and Uninterruptible Power Supplies * Low Qrr Body Diode * UIS Capability (Single Pulse and Repetitive Pulse) Formerly developmental type 82567 D D G G D2-PAK S S MOSFET Maximum Ratings TC = 25C unless otherwise noted Symbol Parameter FDB070AN06A0 Unit V DSS Drain to Source Voltage 60 V VGS Gate to Source Voltage 20 V 80 A 15 A Drain Current ID Continuous (TC < 97oC, VGS = 10V) o o Continuous (TA = 25 C, VGS = 10V, R JA = 43 C/W) Pulsed EAS PD TJ, TSTG Single Pulse Avalanche Energy (Note 1) Power dissipation Figure 4 A 190 mJ 175 Derate above 25oC Operating and Storage Temperature W 1.17 W/oC -55 to 175 C o Thermal Characteristics RJC Thermal Resistance Junction to Case, Max. RJA Thermal Resista

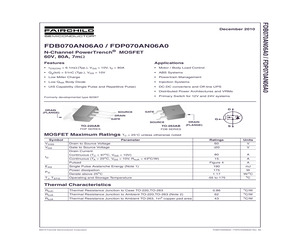

FDB070AN06A0 / FDP070AN06A0 N-Channel PowerTrench(R) MOSFET 60V, 80A, 7m Features Applications * r DS(ON) = 6.1m (Typ.), V GS = 10V, ID = 80A * Motor / Body Load Control * Qg(tot) = 51nC (Typ.), VGS = 10V * ABS Systems * Low Miller Charge * Powertrain Management * Low QRR Body Diode * Injection Systems * UIS Capability (Single Pulse and Repetitive Pulse) * DC-DC converters and Off-line UPS * Distributed Power Architectures and VRMs * Primary Switch for 12V and 24V systems Formerly developmental type 82567 D DRAIN (FLANGE) SOURCE GATE DRAIN G GATE SOURCE TO-220AB TO-263AB FDP SERIES FDB SERIES DRAIN (FLANGE) S MOSFET Maximum Ratings TC = 25C unless otherwise noted Symbol VDSS Drain to Source Voltage Parameter Ratings 60 Units V VGS Gate to Source Voltage 20 V Continuous (TC < 97oC, VGS = 10V) 80 A Continuous (TA = 25oC, VGS = 10V, R JA = 43oC/W) 15 A Drain Current ID Pulsed EAS PD TJ, TSTG Single Pulse Avalanche Energy (Note 1) Figure 4 A 190 mJ Power dissipation 175 W Derate above 25oC 1.17 W/oC

ertrain Management Injection Systems DC-DC converters and Off -line UPS Distributed Pow er Architectures and VRMs Primary Sw itch for 12V and 24V systems Formerly developmental type 82567 Ordering Information Device Output Voltage Marking Package Shipping FDB070AN06A0-F085 TBD FDB070AN06A0 TO-263AB Tape and Reel (c) 2017 Semiconductor Components Industries, LLC August-2017, Rev. 2 Publication Order Number: FDB070AN06A0-F085/D FDB070AN06A0-F085 -- N-Channel PowerTrench(R) MOSFET FDB070AN06A0-F085 N-Channel PowerTrench(R) MOSFET 60V, 80A, 7m TC = 25 unless otherwise noted Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions and stressing the parts to these levels is not recommended. In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings

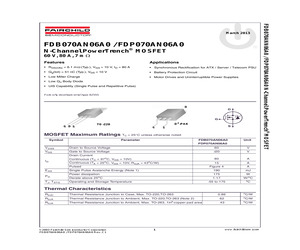

FDB070AN06A0 / FDP070AN06A0 N-Channel PowerTrench(R) MOSFET 60 V, 80 A, 7 m Features Applications * R DS(ON) = 6.1 m (Typ.), VGS = 10 V, ID = 80 A * Synchronous Rectification for ATX / Server / Telecom PSU * Qg(tot) = 51 nC (Typ.), VGS = 10 V * Battery Protection Circuit * Low Miller Charge * Motor Drives and Uninterruptible Power Supplies * Low Qrr Body Diode * UIS Capability (Single Pulse and Repetitive Pulse) Formerly developmental type 82555 D D G G DS D2-PAK TO-220 G S S MOSFET Maximum Ratings TC = 25C unless otherwise noted Symbol Parameter FDB070AN06A0 FDP070AN06A0 Unit V DSS Drain to Source Voltage 60 V VGS Gate to Source Voltage 20 V Continuous (TC < 97oC, VGS = 10V) 80 A Continuous (TA = 25oC, VGS = 10V, R JA = 43oC/W) 15 A Drain Current ID Pulsed E AS PD TJ, TSTG Single Pulse Avalanche Energy (Note 1) Figure 4 A 190 mJ Power dissipation 175 W Derate above 25oC 1.17 W/oC Operating and Storage Temperature o -55 to 175 C Thermal Characteristics RJC Thermal Resistance Junction

FDB070AN06A0 / FDP070AN06A0 N-Channel PowerTrench(R) MOSFET 60V, 80A, 7m Features Applications * r DS(ON) = 6.1m (Typ.), V GS = 10V, ID = 80A * Motor / Body Load Control * Qg(tot) = 51nC (Typ.), VGS = 10V * ABS Systems * Low Miller Charge * Powertrain Management * Low QRR Body Diode * Injection Systems * UIS Capability (Single Pulse and Repetitive Pulse) * DC-DC converters and Off-line UPS * Qualified to AEC Q101 * Distributed Power Architectures and VRMs Formerly developmental type 82567 * Primary Switch for 12V and 24V systems D DRAIN (FLANGE) SOURCE GATE DRAIN G GATE SOURCE TO-220AB TO-263AB FDP SERIES FDB SERIES DRAIN (FLANGE) S MOSFET Maximum Ratings TC = 25C unless otherwise noted Symbol VDSS Drain to Source Voltage Parameter Ratings 60 Units V VGS Gate to Source Voltage 20 V Continuous (TC < 97oC, VGS = 10V) 80 A Continuous (TA = 25oC, VGS = 10V, R JA = 43oC/W) 15 A Drain Current ID Pulsed EAS PD TJ, TSTG Single Pulse Avalanche Energy (Note 1) Figure 4 A 190 mJ Power dissipation 175 W Dera

FDB070AN06A0 N-Channel PowerTrench(R) MOSFET 60 V, 80 A, 7 m Features Applications * RDS(on) = 6.1 m ( Typ.) @ VGS = 10 V, ID = 80 A * Synchronous Rectification for ATX / Server / Telecom PSU * Qg(tot) = 51 nC ( Typ.) @ VGS = 10 V * Battery Protection Circuit * Low Miller Charge * Motor Drives and Uninterruptible Power Supplies * Low Qrr Body Diode * UIS Capability (Single Pulse and Repetitive Pulse) Formerly developmental type 82567 D D G G D2-PAK S S MOSFET Maximum Ratings TC = 25C unless otherwise noted Symbol Parameter FDB070AN06A0 Unit V DSS Drain to Source Voltage 60 V VGS Gate to Source Voltage 20 V 80 A 15 A Drain Current ID Continuous (TC < 97oC, VGS = 10V) o o Continuous (TA = 25 C, VGS = 10V, R JA = 43 C/W) Pulsed EAS PD TJ, TSTG Single Pulse Avalanche Energy (Note 1) Power dissipation Figure 4 A 190 mJ 175 Derate above 25oC Operating and Storage Temperature W 1.17 W/oC -55 to 175 C o Thermal Characteristics RJC Thermal Resistance Junction to Case, Max. RJA Thermal Resista

ges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. FDB070AN06A0_F085 N-Channel PowerTrench(R) MOSFET 60V, 80A, 7m Features Applications rDS(ON) = 6.1m (Typ.), VGS = 10V, ID = 80A Qualified to AEC Q101 Qg(tot) = 51nC (Typ.), VGS = 10V Low Miller Charge Low QRR Body Diode UIS Capability (Single Pulse and Repetitive Pulse) RoHS Compliant Motor / Body Load Control ABS Systems Powertrain Management Injection Systems DC-DC converters and Off-line UPS Distributed Power Architectures and VRMs Primary Switch for 12V and 24V systems Formerly developmental type 82567 Ordering Information Device Output Voltage Marking Package Shipping FDB070AN06A0_F085 TBD FDB070AN06A0 TO-263AB Tape and Reel (c) 2017 Semiconductor Components Industries, LLC FDB070AN06A0_F085 * Rev. 1.2
