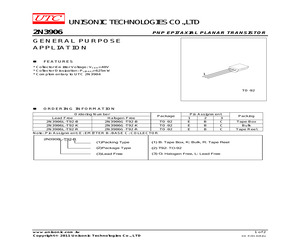

3906 PNP EPITAXIAL PLANAR TRANSISTOR GENERAL PURPOSE APPLIATION FEATURES * Collector-Emitter Voltage: VCEO=40V * Collector Dissipation: Pc(MAX)=625mW * Complementary to UTC 2N3904 1 TO-92 ORDERING INFORMATION Ordering Number Package Lead Free Halogen Free 2N3906L-T92-B 2N3906G-T92-B TO-92 2N3906L-T92-K 2N3906G-T92-K TO-92 2N3906L-T92-R 2N3906G-T92-R TO-92 Note: Pin Assignment: E: EMITTER B: BASE C: COLLECTOR www.unisonic.com.tw Copyright (c) 2011 Unisonic Technologies Co., LTD Pin Assignment 1 2 3 E B C E B C E B C Packing Tape Box Bulk Tape Reel 1 of 2 QW-R201-028,Ba 2N3906 PNP EPITAXIAL PLANAR TRANSISTOR ABSOLUTE MAXIMUM RATING ( Ta=25, unless otherwise specified ) PARAMETER SYMBOL RATINGS UNIT Collector-base voltage VCBO -40 V Collector-emitter voltage VCEO -40 V Emitter-base voltage VEBO -5 V Collector current IC -200 mA Base Current IB -50 mA Collector dissipation PC 625 mW Junction Temperature TJ 125 Operating Temperature TOPR -20 ~ +85 Storage Temperature TSTG -40

3906 PNP EPITAXIAL PLANAR TRANSISTOR GENERAL PURPOSE APPLIATION FEATURES * Collector-Emitter Voltage: VCEO=40V * Collector Dissipation: Pc(MAX)=625mW * Complementary to UTC 2N3904 1 TO-92 ORDERING INFORMATION Ordering Number Package Lead Free Halogen Free 2N3906L-T92-B 2N3906G-T92-B TO-92 2N3906L-T92-K 2N3906G-T92-K TO-92 2N3906L-T92-R 2N3906G-T92-R TO-92 Note: Pin Assignment: E: EMITTER B: BASE C: COLLECTOR www.unisonic.com.tw Copyright (c) 2012 Unisonic Technologies Co., LTD Pin Assignment 1 2 3 E B C E B C E B C Packing Tape Box Bulk Tape Reel 1 of 3 QW-R201-028, C 2N3906 PNP EPITAXIAL PLANAR TRANSISTOR ABSOLUTE MAXIMUM RATING ( TA=25, unless otherwise specified ) PARAMETER SYMBOL RATINGS UNIT Collector-Base Voltage VCBO -40 V Collector-Emitter Voltage VCEO -40 V Emitter-Base Voltage VEBO -5 V Collector Current IC -200 mA Base Current IB -50 mA Collector dissipation PC 625 mW Junction Temperature TJ 125 Operating Temperature TOPR -20 ~ +85 Storage Temperature TSTG -40
