2N3905 2N3906 PNP SILICON TRANSISTOR w w w. c e n t r a l s e m i . c o m DESCRIPTION: The CENTRAL SEMICONDUCTOR 2N3905 and 2N3906 types are PNP silicon transistors designed for general purpose amplifier and switching applications. NPN complementary types are 2N3903 and 2N3904. MARKING: FULL PART NUMBER TO-92 CASE MAXIMUM RATINGS: (TA=25C) Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation Operating and Storage Junction Temperature Thermal Resistance ELECTRICAL SYMBOL ICEV BVCBO BVCEO BVEBO VCE(SAT) VCE(SAT) VBE(SAT) VBE(SAT) hFE hFE hFE hFE hFE hfe fT Cob Cib NF ton toff SYMBOL VCBO VCEO VEBO IC PD TJ, Tstg JA CHARACTERISTICS: (TA=25C) TEST CONDITIONS VCE=30V, VEB=3.0V IC=10A IC=1.0mA IE=10A IC=10mA, IB=1.0mA IC=50mA, IB=5.0mA IC=10mA, IB=1.0mA IC=50mA, IB=5.0mA VCE=1.0V, IC=0.1mA VCE=1.0V, IC=1.0mA VCE=1.0V, IC=10mA VCE=1.0V, IC=50mA VCE=1.0V, IC=100mA VCE=10V, IC=1.0mA, f=1.0kHz VCE=20V, IC=10mA, f=100MHz VCB=5.0V, IE=0, f=100kHz VEB=0.5V, I

SGD501/D REV 19, October 9, 2004 NORTH AMERICA SALES AND DISTRIBUTION ON Semiconductor PRICE BOOK THIS BOOK IS IN COMPUTER SORT PRODUCT CLASSIFICATION - Please see General Information Section EFFECTIVE DATE: OCTOBER 9, 2004 General Information ON Semiconductor Standard Policies & Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . . . Indemnification Form . . . . . . . . . . . . . . . . . . . . . . . Pricing and Ordering Information . . . . . . . . . . . . . Using Computer Sort - Finding Devices Easily In This Book . . . . . . 4 (Rev. Jan. 96) 5 (Rev. Jan. 94) 6 (Rev. Jul. 04) 7 (Rev. Jan. 96) http://onsemi.com General Information 3 Price Book, October 9, 2004 ON SEMICONDUCTOR STANDARD POLICIES & DISCLAIMERS ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of t

SGD501/D REV 17, April 10, 2004 NORTH AMERICA SALES AND DISTRIBUTION ON Semiconductor PRICE BOOK THIS BOOK IS IN COMPUTER SORT PRODUCT CLASSIFICATION - Please see General Information Section EFFECTIVE DATE: APRIL 10, 2004 General Information Elimination Of Ozone Depleting Chemicals . . . . ON Semiconductor Standard Policies & Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . . . Indemnification Form . . . . . . . . . . . . . . . . . . . . . . . Pricing and Ordering Information . . . . . . . . . . . . . Using Computer Sort - Finding Devices Easily In This Book . . . . . . 4 (Rev. Jul. 97) 5 (Rev. Jan. 96) 6 (Rev. Jan. 94) 7 (Rev. Apr. 04) 8 (Rev. Jan. 96) http://onsemi.com General Information 3 Price Book, April 10, 2004 ELIMINATION OF OZONE DEPLETING CHEMICALS ON Semiconductor has been asked by many of its customers to report on its usage of ozone depleting substances in its manufacture of products with respect to the new federal labeling requirements under the 1990 Clean Air Act amendments. As of

2N3905 2N3906 PNP SILICON TRANSISTOR w w w. c e n t r a l s e m i . c o m DESCRIPTION: The CENTRAL SEMICONDUCTOR 2N3905 and 2N3906 types are PNP silicon transistors designed for general purpose amplifier and switching applications. NPN complementary types are 2N3903 and 2N3904. MARKING: FULL PART NUMBER TO-92 CASE MAXIMUM RATINGS: (TA=25C) Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation Operating and Storage Junction Temperature Thermal Resistance ELECTRICAL SYMBOL ICEV BVCBO BVCEO BVEBO VCE(SAT) VCE(SAT) VBE(SAT) VBE(SAT) hFE hFE hFE hFE hFE hfe fT Cob Cib NF ton toff SYMBOL VCBO VCEO VEBO IC PD TJ, Tstg JA CHARACTERISTICS: (TA=25C) TEST CONDITIONS VCE=30V, VEB=3.0V IC=10A IC=1.0mA IE=10A IC=10mA, IB=1.0mA IC=50mA, IB=5.0mA IC=10mA, IB=1.0mA IC=50mA, IB=5.0mA VCE=1.0V, IC=0.1mA VCE=1.0V, IC=1.0mA VCE=1.0V, IC=10mA VCE=1.0V, IC=50mA VCE=1.0V, IC=100mA VCE=10V, IC=1.0mA, f=1.0kHz VCE=20V, IC=10mA, f=100MHz VCB=5.0V, IE=0, f=100kHz VEB=0.5V, I

SGD501/D REV 13, April 12, 2003 NORTH AMERICA SALES AND DISTRIBUTION ON Semiconductor PRICE BOOK THIS BOOK IS IN COMPUTER SORT PRODUCT CLASSIFICATION - Please see General Information Section EFFECTIVE DATE: APRIL 12, 2003 General Information Elimination Of Ozone Depleting Chemicals . . . . ON Semiconductor Standard Policies & Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . . . Indemnification Form . . . . . . . . . . . . . . . . . . . . . . . Pricing and Ordering Information . . . . . . . . . . . . . Using Computer Sort - Finding Devices Easily In This Book . . . . . . 4 (Rev. Jul. 97) 5 (Rev. Jan. 96) 6 (Rev. Jan. 94) 7 (Rev. Jul. 02) 8 (Rev. Jan. 96) http://onsemi.com General Information 3 Price Book, April 12, 2003 ELIMINATION OF OZONE DEPLETING CHEMICALS ON Semiconductor has been asked by many of its customers to report on its usage of ozone depleting substances in its manufacture of products with respect to the new federal labeling requirements under the 1990 Clean Air Act amendments. As of

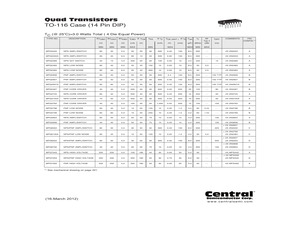

Quad Transistors TO-116 Case (14 Pin DIP) TC (@ 25oC)=3.0 Watts Total ( 4 Die Equal Power) TYPE NO. DESCRIPTION BVCBO BVCEO BVEBO ICBO @ VCB (V) (V) (V) (nA) MIN MIN MIN MAX hFE (V) @ IC (mA) MIN VCE (SAT ) @ IC Cob (V) (mA) MAX (pF) (MHz) fT NF Typ (dB) MAX MIN MAX tOFF COMMENTS PIN CONFIG.** (ns) MPQ2222 NPN AMPL/SWITCH 60 40 5.0 50 50 30 300 0.40 150 8.0 200 -- -- 4X 2N2222 A MPQ2222A NPN AMPL/SWITCH 60 40 6.0 60 10 40 500 0.30 150 8.0 200 -- -- 4X 2N222A A MPQ2369 NPN SAT SWITCH 40 15 4.5 400 20 20 100 0.25 10 4.0 450 -- 15 4X 2N2369 A MPQ2483 NPN LOW NOISE 60 40 6.0 20 45 150 10 0.50 10 8.0 50 3.0 -- 4X 2N2483 A MPQ2484 NPN LOW NOISE 60 40 6.0 20 45 300 10 0.50 10 8.0 50 2.0 -- 4X 2N2484 A MPQ2906 PNP AMPL/SWITCH 60 40 5.0 50 30 30 300 0.4 150 8.0 200 -- 150 TYP 4X 2N2906 B MPQ2907 PNP AMPL/SWITCH 60 40 5.0 50 30 50 300 0.40 150 8.0 200 -- 150 TYP 4X 2N2907 B MPQ2907A PNP AMPL/SWITCH 60 60 5.0 50 30 50 300 0.40 150 8.0 200 -- 150 TYP 4X 2N2907A B MPQ3467 PNP CORE DRIVER 40 40 5.0 200 30 20 500 0.50 500 2

Quad Transistors TO-116 Case (14 Pin DIP) TC (@ 25oC)=3.0 Watts Total ( 4 Die Equal Power) TYPE NO. DESCRIPTION BVCBO BVCEO BVEBO ICBO @ VCB (V) (V) (V) (nA) MIN MIN MIN MAX hFE (V) @ IC (mA) MIN VCE (SAT ) @ IC Cob (V) (mA) MAX (pF) (MHz) fT NF Typ (dB) MAX MIN MAX tOFF COMMENTS PIN CONFIG.** (ns) MPQ2222 NPN AMPL/SWITCH 60 40 5.0 50 50 30 300 0.40 150 8.0 200 -- -- 4X 2N2222 A MPQ2222A NPN AMPL/SWITCH 60 40 6.0 60 10 40 500 0.30 150 8.0 200 -- -- 4X 2N222A A MPQ2369 NPN SAT SWITCH 40 15 4.5 400 20 20 100 0.25 10 4.0 450 -- 15 4X 2N2369 A MPQ2483 NPN LOW NOISE 60 40 6.0 20 45 150 10 0.50 10 8.0 50 3.0 -- 4X 2N2483 A MPQ2484 NPN LOW NOISE 60 40 6.0 20 45 300 10 0.50 10 8.0 50 2.0 -- 4X 2N2484 A MPQ2906 PNP AMPL/SWITCH 60 40 5.0 50 30 30 300 0.4 150 8.0 200 -- 150 TYP 4X 2N2906 B MPQ2907 PNP AMPL/SWITCH 60 40 5.0 50 30 50 300 0.40 150 8.0 200 -- 150 TYP 4X 2N2907 B MPQ2907A PNP AMPL/SWITCH 60 60 5.0 50 30 50 300 0.40 150 8.0 200 -- 150 TYP 4X 2N2907A B MPQ3467 PNP CORE DRIVER 40 40 5.0 200 30 20 500 0.50 500 2

Quad Transistors TO-116 Case (14 Pin DIP) TC (@ 25oC)=3.0 Watts Total ( 4 Die Equal Power) TYPE NO. DESCRIPTION BVCBO BVCEO BVEBO ICBO @ VCB (V) (V) (V) (nA) MIN MIN MIN MAX hFE (V) @ IC (mA) MIN VCE (SAT ) @ IC Cob (V) (mA) MAX (pF) (MHz) fT NF Typ (dB) MAX MIN MAX tOFF COMMENTS PIN CONFIG.** (ns) MPQ2222 NPN AMPL/SWITCH 60 40 5.0 50 50 30 300 0.40 150 8.0 200 -- -- 4X 2N2222 A MPQ2222A NPN AMPL/SWITCH 60 40 6.0 60 10 40 500 0.30 150 8.0 200 -- -- 4X 2N222A A MPQ2369 NPN SAT SWITCH 40 15 4.5 400 20 20 100 0.25 10 4.0 450 -- 15 4X 2N2369 A MPQ2483 NPN LOW NOISE 60 40 6.0 20 45 150 10 0.50 10 8.0 50 3.0 -- 4X 2N2483 A MPQ2484 NPN LOW NOISE 60 40 6.0 20 45 300 10 0.50 10 8.0 50 2.0 -- 4X 2N2484 A MPQ2906 PNP AMPL/SWITCH 60 40 5.0 50 30 30 300 0.4 150 8.0 200 -- 150 TYP 4X 2N2906 B MPQ2907 PNP AMPL/SWITCH 60 40 5.0 50 30 50 300 0.40 150 8.0 200 -- 150 TYP 4X 2N2907 B MPQ2907A PNP AMPL/SWITCH 60 60 5.0 50 30 50 300 0.40 150 8.0 200 -- 150 TYP 4X 2N2907A B MPQ3467 PNP CORE DRIVER 40 40 5.0 200 30 20 500 0.50 500 2

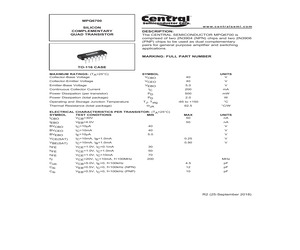

MPQ6700 SILICON COMPLEMENTARY QUAD TRANSISTOR w w w. c e n t r a l s e m i . c o m DESCRIPTION: The CENTRAL SEMICONDUCTOR MPQ6700 is comprised of two 2N3904 (NPN) chips and two 2N3906 (PNP) chips to be used as dual complementary pairs for general purpose amplifier and switching applications. MARKING: FULL PART NUMBER TO-116 CASE MAXIMUM RATINGS: (TA=25C) Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation (per transistor) Power Dissipation (total package) Operating and Storage Junction Temperature Thermal Resistance (total package) ELECTRICAL SYMBOL ICBO IEBO SYMBOL VCBO VCEO VEBO IC 40 UNITS V 40 V 5.0 V 200 mA PD PD 500 mW 2.0 W TJ, Tstg JA -65 to +150 C 62.5 C/W MAX 50 UNITS nA 50 nA CHARACTERISTICS PER TRANSISTOR: (TA=25C) TEST CONDITIONS MIN VCB=30V BVCBO VEB=4.0V IC=10A 40 V BVCEO IC=10mA 40 V BVEBO IE=10A 5.0 VCE(SAT) IC=10mA, IB=1.0mA IC=10mA, IB=1.0mA VBE(SAT) hFE hFE hFE fT Cob VCE=1.0V, IC=0.1mA VCE=1.0V, IC=1.0mA VCE=1.0V, IC=10mA VC

Small Signal Transistors TO-92 Case TYPE NO. DESCRIPTION LEAD VCBO VCEO VEBO CODE (V) ECB MIN 18 (V) *VCES MIN 18 (V) ICBO @ VCB (nA) (V) MIN 5.0 *ICES *ICEV MAX 500 18 hFE @ VCE @ IC (V) MIN 75 *hFE (1kHZ) MAX 250 (mA) VCE (SAT) @ IC Cob (V) (mA) fT NF toff (pF) (MHz) (dB) *Crb *TYP MAX MIN MAX MAX 12 2.8 -- 2N2712 NPN AMPL/SWITCH -- -- -- -- 2N2714 NPN AMPL/SWITCH ECB 18 18 5.0 100 18 75 250 0.30 50 1.20 50 -- -- -- 2N2923 NPN LOW NOISE ECB 25 25 5.0 100 25 90 180* -- -- -- -- 10 160* -- -- 2N2924 NPN LOW NOISE ECB 25 25 5.0 100 25 150 300* -- -- -- -- 10 160* -- -- 2N2925 NPN LOW NOISE ECB 25 25 5.0 100 25 235 470* -- -- -- -- 10 160* 2.8 -- 2N2926 NPN LOW NOISE ECB 25 25 5.0 500 18 35 470* -- -- -- -- 10 120* 2.8 -- 2N3391A NPN LOW NOISE ECB 25 25 5.0 100 25 250 500 4.50 2.0 -- -- 10 120* 5.0 -- 2N3392 NPN LOW NOISE ECB 25 25 5.0 100 25 150 300 4.50 2.0 -- -- 10 120* -- -- 2N3393 NPN LOW NOISE ECB 25 25 5.0 100 25 90 180 4.50 2.0 -- -- 10 120* -- -- 2N3395 NPN LOW NOISE ECB 25 25 5.0 100 25 150 500 4.50 2

Small Signal Transistors TO-92 Case TYPE NO. DESCRIPTION LEAD VCBO VCEO VEBO CODE (V) ECB MIN 18 (V) *VCES MIN 18 (V) ICBO @ VCB (nA) (V) MIN 5.0 *ICES *ICEV MAX 500 18 hFE @ VCE @ IC (V) MIN 75 *hFE (1kHZ) MAX 250 (mA) VCE (SAT) @ IC Cob (V) (mA) fT NF toff (pF) (MHz) (dB) *Crb *TYP MAX MIN MAX MAX 12 2.8 -- 2N2712 NPN AMPL/SWITCH -- -- -- -- 2N2714 NPN AMPL/SWITCH ECB 18 18 5.0 100 18 75 250 0.30 50 1.20 50 -- -- -- 2N2923 NPN LOW NOISE ECB 25 25 5.0 100 25 90 180* -- -- -- -- 10 160* -- -- 2N2924 NPN LOW NOISE ECB 25 25 5.0 100 25 150 300* -- -- -- -- 10 160* -- -- 2N2925 NPN LOW NOISE ECB 25 25 5.0 100 25 235 470* -- -- -- -- 10 160* 2.8 -- 2N2926 NPN LOW NOISE ECB 25 25 5.0 500 18 35 470* -- -- -- -- 10 120* 2.8 -- 2N3391A NPN LOW NOISE ECB 25 25 5.0 100 25 250 500 4.50 2.0 -- -- 10 120* 5.0 -- 2N3392 NPN LOW NOISE ECB 25 25 5.0 100 25 150 300 4.50 2.0 -- -- 10 120* -- -- 2N3393 NPN LOW NOISE ECB 25 25 5.0 100 25 90 180 4.50 2.0 -- -- 10 120* -- -- 2N3395 NPN LOW NOISE ECB 25 25 5.0 100 25 150 500 4.50 2
