egative polarity for PNP transistors. Thermal Characteristics Symbol PD TA = 25C unless otherwise noted Characteristic RJC Total Device Dissipation Derate above 25C Thermal Resistance, Junction to Case RJA Thermal Resistance, Junction to Ambient Max Units 2N3906 625 5.0 83.3 *MMBT3906 350 2.8 **PZT3906 1,000 8.0 200 357 125 mW mW/C C/W C/W *Device mounted on FR-4 PCB 1.6" X 1.6" X 0.06." **Device mounted on FR-4 PCB 36 mm X 18 mm X 1.5 mm; mounting pad for the collector lead min. 6 cm2. 2001 Fairchild Semiconductor Corporation 2N3906/MMBT3906/PZT3906, Rev A 2N3906 / MMBT3906 / PZT3906 2N3906 (continued) Electrical Characteristics Symbol TA = 25C unless otherwise noted Parameter Test Conditions Min Max Units OFF CHARACTERISTICS V(BR)CEO Collector-Emitter Breakdown Voltage* IC = 1.0 mA, IB = 0 40 V V(BR)CBO Collector-Base Breakdown Voltage IC = 10 A, IE = 0 40 V V(BR)EBO Emitter-Base Breakdown Voltage IE = 10 A, IC = 0 5.0 IBL Base Cutoff Current VCE = 30 V, V

2N3906 / MMBT3906 / PZT3906 PNP General-Purpose Amplifier Description This device is designed for general-purpose amplifier and switching applications at collector currents of 10 mA to 100 mA. 2N3906 PZT3906 MMBT3906 C C E E TO-92 SOT-23 SOT-223 B Mark:2A EBC C B Ordering Information Part Number Marking Package Packing Method Pack Quantity 2N3906BU 2N3906 TO-92 3L Bulk 10000 2N3906TA 2N3906 TO-92 3L Ammo 2000 2N3906TAR 2N3906 TO-92 3L Ammo 2000 2N3906TF 2N3906 TO-92 3L Tape and Reel 2000 2N3906TFR 2N3906 TO-92 3L Tape and Reel 2000 MMBT3906 2A SOT-23 3L Tape and Reel 3000 PZT3906 3906 SOT-223 4L Tape and Reel 2500 (c) 2010 Fairchild Semiconductor Corporation 2N3906 / MMBT3906 / PZT3906 Rev. 1.2.2 www.fairchildsemi.com 1 2N3906 / MMBT3906 / PZT3906 -- PNP General-Purpose Amplifier April 2014 Stresses exceeding the absolute maximum

99 99 100 101 101 102 102 103 103 103 104 104 104 105 105 105 106 106 106 107 108 108 108 109 109 109 110 110 111 111 111 112 112 112 113 114 114 114 115 116 117 http://www.keccorp.com 3 Index 2N2904E 2N2906E 2N3904 2N3904C 2N3904E 2N3904S 2N3904U 2N3904V 2N3906 2N3906C 2N3906E 2N3906S 2N3906U 2N3906V 2N5400 2N5400S 2N5401 2N5401C 2N5401S 2N5550 2N5550S 2N5551 2N5551C 2N5551S 2N7000 2N7000A 2N7000K 2N7002 2N7002A 2N7002K B10A100VIC B10A45VI B10A45VIC B10A60VIC B15A45VIC B15A60VIC B20A100VIC B20A45VIC B20A60VIC B30A45VIC B5A100VI B5A45VI B5A45VIC B5A60VI B5A60VIC BC237 BC238 BC239 BC307 BC308 BC309 BC327 BC328 BC337 BC338 BC516 BC517 BC546 BC547 BC548 BC549 BC550 BC556 BC557 BC558 BC559 BC560 BC637 BC638 BC807 BC817 BC846 BC846W BC847 BC847W BC848 BC848W BC849 BC850 BC856 BC856W BC857 BC857W BC858 BC858W 4 Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transist

er Amp ICs Motor Driver ICs Miscellaneous ICs Domestic & Overseas Network 74 74 74 75 75 76 76 76 76 77 78 78 79 79 79 80 80 80 81 81 81 81 82 82 82 83 83 84 84 85 85 86 87 88 89 89 89 89 89 90 http://www.keccorp.com 3 Index 2N3904 2N3904C 2N3904S 2N3904U 2N3906 2N3906C 2N3906S 2N3906U 2N5400 2N5400S 2N5401 2N5401C 2N5401S 2N5550 2N5550S 2N5551 2N5551C 2N5551S B5A45VI B5A45VIC B5A60VI B5A60VIC B5A90VI B10A45VI B10A45VIC B10A60VIC B10A90VIC B15A45VIC B15A60VIC B20A45VIC B20A60VIC B30A45VIC BC237 BC238 BC239 BC307 BC308 BC309 BC327 BC328 BC337 BC338 BC517 BC546 BC547 BC548 BC549 BC550 BC556 BC557 BC558 BC559 BC560 BC637 BC638 BC807 BC817 BC846 BC846W BC847 BC847W BC848 BC848W BC849 BC850 BC856 BC856W BC857 BC857W BC858 BC858W BC859 BC860 BCV71 BCV72 BCW29 BCW30 4 Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor SB

KTA2013V KTA1531T KTX311T KTA1532T KTX312T KTX511T KTA1535T KTA1536T -1.5A MPS8550S -100mA BC858W -500mA KTA2015 KTA511T -30V -800mA -1.5A -2A KTA1541T -3A KTA1542T KTA711T BC858 BC859 KTA1505S KTC9012S MMBTA63 MMBTA64 KTA1298 KTC8550S KTA1544T -5A -200mA 2N3906V 2N3906E 2N2906E KN3906S 2N3906S 2N3906U -40V -45V -600mA KTN2907U -100mA BC857W -200mA -500mA BC807W KN2907S KN4403S KTN2907S BCW69 BCW70 BC857 BC860 BC807 BCW68 -800mA -1.5A -150mA KTA2014F KTA501F KTA701F KTA2014V KTA2014E KTX301E KTA501E KTX102E KTA701E KTA711E KTA712E KTA2014 -200mA -50V -500mA -1A -2A -3A -5A -100mA -60V KTX102U KTA701U KTA711U KTA712U KTA1504S KTC9015S KTB1234T KTA1551T KTA1552T BCW89 -500mA -600mA KTX301U KTX302U KTA501U MMBTA55 KTN2907AE KTN2907AU KN2907AS KTN2907AS BC856W BC856 -1A -3A -5A -8A -65V -100mA 4 http://www.kec.co.kr Line-up Bipolar Junction Transistor PNP Transistor( VCEO : -12V ~ -65V ) SOT-89 (4.7X2.5) SOT-223 (6.8X1.8) DPAK TO-92M TO-92 TO-92L IPAK TO-126 TO-

F, MPX System ICs Pre-Amp, Power Amp ICs Motor Driver ICs Miscellaneous ICs 4 http://www.kec.co.kr 73 73 73 74 74 75 75 75 75 76 77 77 78 79 79 79 80 80 80 81 81 81 82 82 82 83 83 83 84 84 85 85 86 86 87 88 88 88 88 88 Index 2N3904 2N3904C 2N3904S 2N3904U 2N3906 2N3906C 2N3906S 2N3906U 2N5400 2N5400S 2N5401 2N5401C 2N5401S 2N5550 2N5550S 2N5551 2N5551C 2N5551S B5A45VI B5A45VIC B5A60VI B5A60VIC B5A90VI B10A45VI B10A45VIC B10A60VIC B10A90VIC B15A45VIC B15A60VIC B20A45VIC B20A60VIC B30A45VIC BC237 BC238 BC239 BC307 BC308 BC309 BC327 BC328 BC337 BC338 BC517 BC546 BC547 BC548 BC549 BC550 BC556 BC557 BC558 BC559 BC560 BC637 BC638 BC807 BC817 BC846 BC846W BC847 BC847W BC848 BC848W BC849 BC850 BC856 BC856W BC857 BC857W BC858 BC858W BC859 BC860 BCV71 BCV72 BCW29 BCW30 Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor Transistor SBD

2N3906 / MMBT3906 / PZT3906 PNP General-Purpose Amplifier Description This device is designed for general-purpose amplifier and switching applications at collector currents of 10 mA to 100 mA. 2N3906 PZT3906 MMBT3906 C C E E TO-92 SOT-23 SOT-223 B Mark:2A EBC C B Ordering Information Part Number Marking Package Packing Method Pack Quantity 2N3906BU 2N3906 TO-92 3L Bulk 10000 2N3906TA 2N3906 TO-92 3L Ammo 2000 2N3906TAR 2N3906 TO-92 3L Ammo 2000 2N3906TF 2N3906 TO-92 3L Tape and Reel 2000 2N3906TFR 2N3906 TO-92 3L Tape and Reel 2000 MMBT3906 2A SOT-23 3L Tape and Reel 3000 PZT3906 3906 SOT-223 4L Tape and Reel 2500 (c) 2010 Fairchild Semiconductor Corporation 2N3906 / MMBT3906 / PZT3906 Rev. 1.2.2 www.fairchildsemi.com 1 2N3906 / MMBT3906 / PZT3906 -- PNP General-Purpose Amplifier April 2014 Stresses exceeding the absolute maximum

ges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. 2N3906 / MMBT3906 / PZT3906 PNP General-Purpose Amplifier Description This device is designed for general-purpose amplifier and switching applications at collector currents of 10 mA to 100 mA. 2N3906 PZT3906 MMBT3906 C C E E TO-92 SOT-23 SOT-223 B Mark:2A EBC C B Ordering Information Part Number Marking Package Packing Method Pack Quantity 2N3906BU 2N3906 TO-92 3L Bulk 10000 2N3906TA 2N3906 TO-92 3L Ammo 2000 2N3906TAR 2N3906 TO-92 3L Ammo 2000 2N3906TF 2N3906 TO-92 3L Tape and Reel 2000 2N3906TFR 2N3906 TO-92 3L Tape and Reel 2000 MMBT3906 2A SOT-23 3L Tape and Reel 3000 PZT3906 3906 SOT-223 4L Tape and

ges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. 2N3906 / MMBT3906 / PZT3906 PNP General-Purpose Amplifier Description This device is designed for general-purpose amplifier and switching applications at collector currents of 10 mA to 100 mA. 2N3906 PZT3906 MMBT3906 C C E E TO-92 SOT-23 SOT-223 B Mark:2A EBC C B Ordering Information Part Number Marking Package Packing Method Pack Quantity 2N3906BU 2N3906 TO-92 3L Bulk 10000 2N3906TA 2N3906 TO-92 3L Ammo 2000 2N3906TAR 2N3906 TO-92 3L Ammo 2000 2N3906TF 2N3906 TO-92 3L Tape and Reel 2000 2N3906TFR 2N3906 TO-92 3L Tape and Reel 2000 MMBT3906 2A SOT-23 3L Tape and Reel 3000 PZT3906 3906 SOT-223 4L Tape and

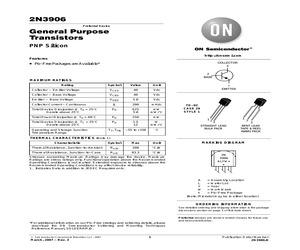

2N3906 Preferred Device General Purpose Transistors PNP Silicon http://onsemi.com Features * Pb-Free Packages are Available* COLLECTOR 3 2 BASE MAXIMUM RATINGS Symbol Value Unit Collector - Emitter Voltage Rating VCEO 40 Vdc Collector - Base Voltage VCBO 40 Vdc Emitter - Base Voltage VEBO 5.0 Vdc Collector Current - Continuous IC 200 mAdc Total Device Dissipation @ TA = 25C Derate above 25C PD 625 5.0 mW mW/C Total Power Dissipation @ TA = 60C PD 250 mW Total Device Dissipation @ TC = 25C Derate above 25C PD 1.5 12 W mW/C TJ, Tstg -55 to +150 C Operating and Storage Junction Temperature Range 1 EMITTER TO-92 CASE 29 STYLE 1 1 12 3 STRAIGHT LEAD BULK PACK 2 3 BENT LEAD TAPE & REEL AMMO PACK THERMAL CHARACTERISTICS (Note 1) Characteristic Symbol Max Unit Thermal Resistance, Junction-to-Ambient RqJA 200 C/W Thermal Resistance, Junction-to-Case RqJC 83.3 C/W Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Op
