1N5400GP ........ 1N5408GP 3.0 Amp. Glass Passivated Junction Rectifier Current 3.0 A at 105 C Voltage 50V to 1000 V DO-201AD (DO-27) R FEATURES Glass passivated chip junction Hyperectifier structure for high reliability Cavity-free glass-passivated junction Low forward voltage drop Low leakage current, typical IR less than 0.1 A High forward surge capability Solder dip 260C, 10s Component in accordance to RoHS 2011/65/EU and WEEE 2002/96/EC MECHANICAL DATA Case: DO-201AD (DO-27). Epoxy meets UL 94V-0 flammability rating. Polarity: Color band denotes cathode end Terminals : Matte tin plated leads, solderable per MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102. Consumer grade, meets JESD 201 class 1A whisker test. TYPICAL APPLICATIONS Used in general purpose rectification of power supplies, inverters, converters and freewheeling diodes application Maximun Ratings and Electrical Characteristics at 25C 1N 1N 1N 1N 1N 1N 1N 5400GP 5401GP 5402GP 5404GP 5406GP 5407GP 5408GP 50 100 200 400 VRRM Peak

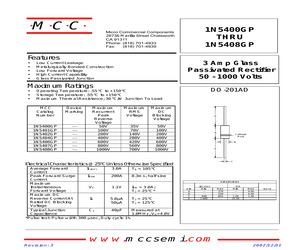

1N5400GP THRU 1N5408GP omponents 20736 Marilla Street Chatsworth !"# $ % !"# Features * * * * 3 Amp Glass Passivated Rectifier 50 - 1000 Volts Low Current Leakage High Current Capability Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Glass Passivated Junction Maximum Ratings * * * DO-201AD Operating Temperature: -55C to +150C Storage Temperature: -55C to +150C Maximum Thermal Resistance; 30 C/W Junction To Lead MCC Catalog Number Device Marking 1N5400GP 1N5401GP 1N5402GP 1N5404GP 1N5406GP 1N5407GP 1N5408GP 1N5400GP 1N5401GP 1N5402GP 1N5404GP 1N5406GP 1N5407GP 1N5408GP Maximum Recurrent Peak Reverse Voltage 50V 100V 200V 400V 600V 800V 1000V Maximum RMS Voltage Maximum DC Blocking Voltage 35V 70V 140V 280V 420V 560V 700V 50V 100V 200V 400V 600V 800V 1000V D A Cathode Mark B D C Electrical Characteristics @ 25C Unless Otherwise Specified Average Forward Current Peak Forward Surge Current Maximum Instantaneous Forward Voltage Maximum DC Reverse C

1N5400GP THRU 1N5408GP omponents 20736 Marilla Street Chatsworth !"# $ % !"# Features * * * * Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix designates RoHS Compliant. See ordering information) High Current Capability and Low Current Leakage Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 and MSL Rating 1 Glass Passivated Junction 3 Amp Glass Passivated Rectifier 50 - 1000 Volts Maximum Ratings * * * DO-201AD Operating Temperature: -55C to +150C Storage Temperature: -55C to +150C Maximum Thermal Resistance; 30 C/W Junction To Lead MCC Catalog Number Device Marking 1N5400GP 1N5401GP 1N5402GP 1N5404GP 1N5406GP 1N5407GP 1N5408GP 1N5400GP 1N5401GP 1N5402GP 1N5404GP 1N5406GP 1N5407GP 1N5408GP Maximum Recurrent Peak Reverse Voltage 50V 100V 200V 400V 600V 800V 1000V Maximum RMS Voltage Maximum DC Blocking Voltage 35V 70V 140V 280V 420V 560V 700V 50V 100V 200V 400V 600V 800V 1000V D A Cathode Mark B D C Electrical Characteristics @ 25C Unless Oth

1N5400GP THRU 1N5408GP omponents 20736 Marilla Street Chatsworth !"# $ % !"# Features * * * * * * Halogen free available upon request by adding suffix "-HF" Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix designates RoHS Compliant. See ordering information) High Current Capability and Low Current Leakage Epoxy meets UL 94 V-0 flammability rating Moisture Sensitivity Level 1 Glass Passivated Junction 3 Amp Glass Passivated Rectifier 50 - 1000 Volts Maximum Ratings * * * DO-201AD Operating Temperature: -55C to +150C Storage Temperature: -55C to +150C Maximum Thermal Resistance; 30 C/W Junction To Lead MCC Catalog Number Device Marking 1N5400GP 1N5401GP 1N5402GP 1N5404GP 1N5406GP 1N5407GP 1N5408GP 1N5400GP 1N5401GP 1N5402GP 1N5404GP 1N5406GP 1N5407GP 1N5408GP Maximum Recurrent Peak Reverse Voltage 50V 100V 200V 400V 600V 800V 1000V Maximum RMS Voltage Maximum DC Blocking Voltage 35V 70V 140V 280V 420V 560V 700V 50V 100V 200V 400V 600V 800V 1000V D A Cathode Mark B D C E

1N5400GP THRU 1N5408GP omponents 20736 Marilla Street Chatsworth !"# $ % !"# Features * * * * Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix designates RoHS Compliant. See ordering information) High Current Capability and Low Current Leakage Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 and MSL Rating 1 Glass Passivated Junction 3 Amp Glass Passivated Rectifier 50 - 1000 Volts Maximum Ratings * * * DO-201AD Operating Temperature: -55C to +150C Storage Temperature: -55C to +150C Maximum Thermal Resistance; 30 C/W Junction To Lead MCC Catalog Number Device Marking 1N5400GP 1N5401GP 1N5402GP 1N5404GP 1N5406GP 1N5407GP 1N5408GP 1N5400GP 1N5401GP 1N5402GP 1N5404GP 1N5406GP 1N5407GP 1N5408GP Maximum Recurrent Peak Reverse Voltage 50V 100V 200V 400V 600V 800V 1000V Maximum RMS Voltage Maximum DC Blocking Voltage 35V 70V 140V 280V 420V 560V 700V 50V 100V 200V 400V 600V 800V 1000V D A Cathode Mark B D C Electrical Characteristics @ 25C Unless Oth

1N5400GP THRU 1N5408GP omponents 20736 Marilla Street Chatsworth !"# $ % !"# Features * * * * * Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix designates RoHS Compliant. See ordering information) High Current Capability and Low Current Leakage Epoxy meets UL 94 V-0 flammability rating Moisture Sensitivity Level 1 Glass Passivated Junction 3 Amp Glass Passivated Rectifier 50 - 1000 Volts Maximum Ratings * * * DO-201AD Operating Temperature: -55C to +150C Storage Temperature: -55C to +150C Maximum Thermal Resistance; 30 C/W Junction To Lead MCC Catalog Number Device Marking 1N5400GP 1N5401GP 1N5402GP 1N5404GP 1N5406GP 1N5407GP 1N5408GP 1N5400GP 1N5401GP 1N5402GP 1N5404GP 1N5406GP 1N5407GP 1N5408GP Maximum Recurrent Peak Reverse Voltage 50V 100V 200V 400V 600V 800V 1000V Maximum RMS Voltage Maximum DC Blocking Voltage 35V 70V 140V 280V 420V 560V 700V 50V 100V 200V 400V 600V 800V 1000V D A Cathode Mark B D C Electrical Characteristics @ 25C Unless Otherwise Specified Av

1N5400GP THRU 1N5408GP omponents 20736 Marilla Street Chatsworth !"# $ % !"# Features * * * * * 3 Amp Glass Passivated Rectifier 50 - 1000 Volts Low Current Leakage Metalurgically Bonded Construction Low Forward Voltage High Current Capability Glass Passivated Junction Maximum Ratings * * * DO-201AD Operating Temperature: -55C to +150C Storage Temperature: -55C to +150C Maximum Thermal Resistance; 30 C/W Junction To Lead MCC Catalog Number Device Marking 1N5400GP 1N5401GP 1N5402GP 1N5404GP 1N5406GP 1N5407GP 1N5408GP --------------- Maximum Recurrent Peak Reverse Voltage 50V 100V 200V 400V 600V 800V 1000V Maximum RMS Voltage Maximum DC Blocking Voltage 35V 70V 140V 280V 420V 560V 700V 50V 100V 200V 400V 600V 800V 1000V D A Cathode Mark B D C Electrical Characteristics @ 25C Unless Otherwise Specified Average Forward IF(AV) 3.0A TA = 105C Current Peak Forward Surge IFSM 200A 8.3ms, half sine Current Maximum 1.1V IFM = 3.0A; Instantaneous VF Forward Voltage TJ = 25C* Maximum DC Reverse

1N5400GP THRU 1N5408GP omponents 20736 Marilla Street Chatsworth !"# $ % !"# Features * * * * * 3 Amp Glass Passivated Rectifier 50 - 1000 Volts Low Current Leakage Metalurgically Bonded Construction Low Forward Voltage High Current Capability Glass Passivated Junction Maximum Ratings * * * DO-201AD Operating Temperature: -55C to +150C Storage Temperature: -55C to +150C Maximum Thermal Resistance; 30 C/W Junction To Lead MCC Catalog Number Device Marking 1N5400GP 1N5401GP 1N5402GP 1N5404GP 1N5406GP 1N5407GP 1N5408GP --------------- Maximum Recurrent Peak Reverse Voltage 50V 100V 200V 400V 600V 800V 1000V Maximum RMS Voltage Maximum DC Blocking Voltage 35V 70V 140V 280V 420V 560V 700V 50V 100V 200V 400V 600V 800V 1000V D A Cathode Mark B D C Electrical Characteristics @ 25C Unless Otherwise Specified Average Forward IF(AV) 3.0A TA = 105C Current Peak Forward Surge IFSM 200A 8.3ms, half sine Current Maximum 1.1V IFM = 3.0A; Instantaneous VF Forward Voltage TJ = 25C* Maximum DC Reverse

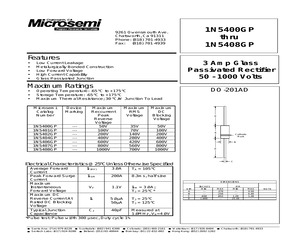

1N5400GP thru 1N5408GP 9261 Owensmouth Ave. Chatsworth, Ca 91311 Phone: (818) 701-4933 Fax: (818) 701-4939 Features * * * * * 3 Amp Glass Passivated Rectifier 50 - 1000 Volts Low Current Leakage Metalurgically Bonded Construction Low Forward Voltage High Current Capability Glass Passivated Junction Maximum Ratings * * * DO-201AD Operating Temperature: -65C to +175C Storage Temperature: -65C to +175C Maximum Thermal Resistance; 30 C/W Junction To Lead Microsemi Catalog Number Device Marking 1N5400GP 1N5401GP 1N5402GP 1N5404GP 1N5406GP 1N5407GP 1N5408GP --------------- Maximum Reccurrent Peak Reverse Voltage 50V 100V 200V 400V 600V 800V 1000V Maximum RMS Voltage Maximum DC Blocking Voltage 35V 70V 140V 280V 420V 560V 700V 50V 100V 200V 400V 600V 800V 1000V D A Cathode Mark B D C Electrical Characteristics @ 25C Unless Otherwise Specified Average Forward IF(AV) 3.0A TA = 105C Current Peak Forward Surge IFSM 200A 8.3ms, half sine Current Maximum Instantaneous VF 1.1V IFM = 3.0A; Forward

1N5400GP 9261 Owensmouth Ave. Chatsworth, Ca 91311 Phone: (818) 701-4933 thru Fax: (818) 701-4939 1 N 5408G P Features e ~=Low Current Leakage * Metalurgically Bonded Construction 3 Amp Glass . * Low Forward Voltage Passivated Rectifier * High Current Capability * Glass Passivated Junction 50 - 1000 Volts Maximum Ratings * Operating Temperature: -65C to +175C DO-201 AD * Storage Temperature: -65C to +175C Maximum Thermal Resistance; 30C/W Junction To Lead Microsemi Device Maximum Maximum | Maximum Catalog Marking | Reccurrent RMS DC Number Peak Voltage Blocking b Reverse Voltage | Voltage i IN5400GP -- 50V 35V 50V { 1N5401GP ao 100V 70V 100V : 1N5402GP oe 200V 140V 200V Leek. cathode 1N5404GP = 400V 280V 400V | Mark 1N5406GP oo 600V 420V 600V im be 8 1N5407GP oe 800V 560V 800V | 1N5408GP oe 1000V 700V 1000V 5 fuer ne ene Electrical Characteristics @ 25C Unless Otherwise Specified Average Forward levavy 3.0A Ta = 105C Current Peak Forward Surge lesa 200A 8.3ms, half sine Current Maximum Instantane

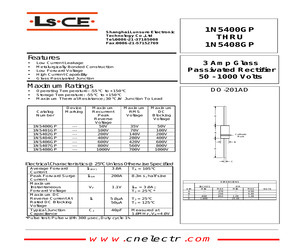

1N5400GP THRU 1N5408GP Shanghai Lunsure Electronic Technology Co.,Ltd Tel:0086-21-37185008 Fax:0086-21-57152769 Features * * * * * 3 Amp Glass Passivated Rectifier 50 - 1000 Volts Low Current Leakage Metalurgically Bonded Construction Low Forward Voltage High Current Capability Glass Passivated Junction Maximum Ratings * * * DO-201AD Operating Temperature: -55C to +150C Storage Temperature: -55C to +150C Maximum Thermal Resistance; 30 C/W Junction To Lead Catalog Number 1N5400GP 1N5401GP 1N5402GP 1N5404GP 1N5406GP 1N5407GP 1N5408GP Device Marking --------------- Maximum Recurrent Peak Reverse Voltage 50V 100V 200V 400V 600V 800V 1000V Maximum RMS Voltage Maximum DC Blocking Voltage 35V 70V 140V 280V 420V 560V 700V 50V 100V 200V 400V 600V 800V 1000V D A Cathode Mark B D C Electrical Characteristics @ 25C Unless Otherwise Specified Average Forward IF(AV) 3.0A TA = 105C Current Peak Forward Surge IFSM 200A 8.3ms, half sine Current Maximum 1.1V IFM = 3.0A; Instantaneous VF Forward Voltag

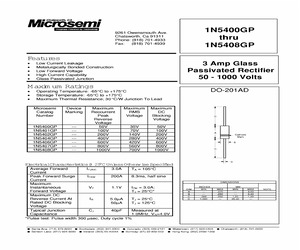

1N5400GP thru 1N5408GP 21201 Itasca St. Chatsworth, CA 91311 Phone: (818) 701-4933 Fax: (818) 701-4939 Features * * * * * 3 Amp Glass Passivated Rectifier 50 - 1000 Volts Low Current Leakage Metalurgically Bonded Construction Low Forward Voltage High Current Capability Glass Passivated Junction Maximum Ratings * * * DO-201AD Operating Temperature: -65C to +175C Storage Temperature: -65C to +175C Maximum Thermal Resistance; 30C/W Junction To Lead Microsemi Part Number 1N5400GP 1N5401GP 1N5402GP 1N5404GP 1N5406GP 1N5407GP 1N5408GP Maximum Recurrent Peak Reverse Voltage 50V 100V 200V 400V 600V 800V 1000V Maximum RMS Voltage Maximum DC Blocking Voltage 35V 70V 140V 280V 420V 560V 700V 50V 100V 200V 400V 600V 800V 1000V D A Cathode Mark B D Electrical Characteristics @ 25C Unless Otherwise Specified Average Forward IF(AV) 3.0A TA = 105C Current Peak Forward Surge IFSM 200A 8.3ms, half sine Current Maximum 1.1V IFM = 3.0A; Instantaneous VF Forward Voltage TJ = 25C* Maximum DC Reverse Curre

1N5400GP THRU 1N5408GP omponents 21201 Itasca Street Chatsworth !"# $ % !"# Features * * * * * 3 Amp Glass Passivated Rectifier 50 - 1000 Volts Low Current Leakage Metalurgically Bonded Construction Low Forward Voltage High Current Capability Glass Passivated Junction Maximum Ratings * * * DO-201AD Operating Temperature: -55C to +150C Storage Temperature: -55C to +150C Maximum Thermal Resistance; 30 C/W Junction To Lead MCC Catalog Number Device Marking 1N5400GP 1N5401GP 1N5402GP 1N5404GP 1N5406GP 1N5407GP 1N5408GP --------------- Maximum Recurrent Peak Reverse Voltage 50V 100V 200V 400V 600V 800V 1000V Maximum RMS Voltage Maximum DC Blocking Voltage 35V 70V 140V 280V 420V 560V 700V 50V 100V 200V 400V 600V 800V 1000V D A Cathode Mark B D C Electrical Characteristics @ 25C Unless Otherwise Specified Average Forward IF(AV) 3.0A TA = 105C Current Peak Forward Surge IFSM 200A 8.3ms, half sine Current Maximum 1.1V IFM = 3.0A; Instantaneous VF Forward Voltage TJ = 25C* Maximum DC Reverse C

rature: -65C to +175C e Maximum Thermal Resistance; 30C/W Junction To Lead 3 Amp Glass Passivated Rectifier 50 - 1000 Volts Microsemi Device Maximum Maximum | Maximum Catalog Marking | Reccurrent RMS DC Number Peak Voltage Blocking Reverse Voltage Voltage 1N5400GP -- 50V 35V 50V 1N5401GP -- 100V 70V 100V 1N5402GP -- 200V 140V 200V 1N5404GP -- 400V 280V 400V 1N5406GP -- 600V 420V 600V 1N5407GP -- 800V 560V 800V 1N5408GP -- 1000V 700V 1000V ElectricalCharacteristics @ 29C Unless Othem ise Specified Average Forward lEvavy 3.0A | Ta = 105C Current Peak Forward Surge lrsm 200A_ | 8.3ms, half sine Current Maximum Instantaneous Ve 1.1V lem = 3.0A; Forward Voltage Ty = 25C* Maximum DC Reverse Current At Ip 5.0uA | Ty = 25C Rated DC Blocking 5OuA =| Ty = 125C Voltage Typical Junction Cy 40pF | Measured at Capacitance 1.0MHz, VR=4.0V *Pulse test: Pulse width 300 usec, Duty cycle 1% DO-201AD Cathode ny L ah. Mark m@ Santa Ana: (714) 979-8220 mm Scottsdale: (602) 941-6300 m Colorado: (303) 469-2161 m Waterto
